View larger
Images are for illustrative purposes only. Please refer to data sheet for details

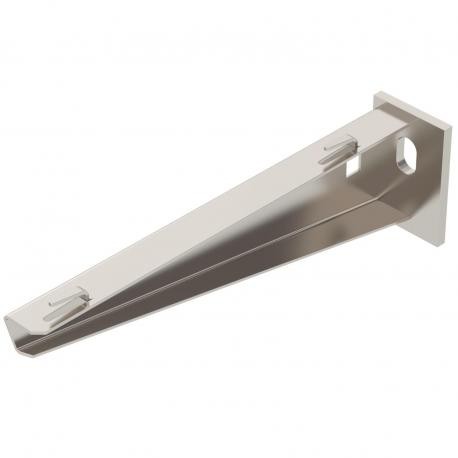

AWG 15 21 A4 6420644 OBO BETTERMANN Wall and support bracket for mesh cable tray, B210mm, Stained, Stainless..
AWG 15 21 A4
6420644
OBO BETTERMANN
1 Pcs.
Wall and support bracket for mesh cable tray, B210mm, Stained, Stainless steel, grade 316 Ti, VA, 1.4571
Wall bracket/AWG profile 15 21 A4, for grid tray B210mm Stainless steel 1.4571, V4A, 1.4571, Polished, with subsequent treatment
Wall and support bracket AWG 15 A4. Light-duty wall and support bracket with welded head plate for screwless mesh cable tray fastening.
Cables > Bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Angle range, max. | 90 mm |
|---|---|
| Angle range, min. | 90 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,3574 kg CO2e / 1 Piece |
| Colour | stainless steel |
| Dimension | B210mm |
| Dimension A | 40 mm |
| Dimension B | 210 mm |
| Dimension H | 60 mm |
| F in kN | 1,5 kN |
| for width max. | 300 mm |
| for width min. | 300 |
|---|---|
| Height | 60 mm |
| Hole diameter | 11 mm |
| Length | 40 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4571 |
| Rustproof steel, pickled | no |
| Surface | Bright, treated |
| Version for | Wall and support bracket |
| Width | 210 mm |
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 40 mm |
| Width (EF000008) | 210 mm |
| Height (EF000040) | 60 mm |
| Suitable for cable support system width (EF008339) | 300 mm |
| Model (EF000010) | Cantilever arm for wall and channel mounting |
| Angle (EF005434) | 90 ° |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Stainless steel |
| Material quality (EF001257) | Stainless steel 316 Ti (1.4571) |
| Surface protection (EF000139) | Untreated |
