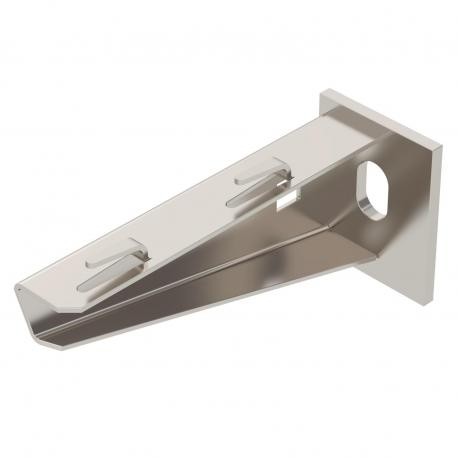

AWG 15 11 VA4571 6420642 OBO BETTERMANN Wall and support bracket for mesh cable tray, B110mm, Stained, Stain..
AWG 15 11 A4
6420642
OBO BETTERMANN
1 Pcs.
Cables > Bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann wall and support bracket for mesh cable tray AWG 15 11 A4 ensures secure horizontal mounting for wire mesh trays.
Cable tray brackets provide the essential standoff distance required to route and protect network cabling along structural walls. Final pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Angle range, max.: 90 mm
- Angle range, min.: 90 mm
- CO2 Footprint (GWP) Cradle-to-Gate: 0,7503 kg CO2e / 1 Piece
- Colour: stainless steel
- Dimension: B110mm
- Dimension A: 40 mm
- Dimension B: 110 mm
- Dimension H: 50 mm
- F in kN: 1,5 kN
- for width max.: 300 mm
- for width min.: 300
- Height: 50 mm
- Hole diameter: 11 mm
- Length: 40 mm
- Maintain electrical functions: no
- Material: Stainless steel 1.4571
More info
▲| Angle range, max. | 90 mm |
|---|---|
| Angle range, min. | 90 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,7503 kg CO2e / 1 Piece |
| Colour | stainless steel |
| Dimension | B110mm |
| Dimension A | 40 mm |
| Dimension B | 110 mm |
| Dimension H | 50 mm |
| F in kN | 1,5 kN |
| for width max. | 300 mm |
| for width min. | 300 |
|---|---|
| Height | 50 mm |
| Hole diameter | 11 mm |
| Length | 40 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4571 |
| Rustproof steel, pickled | no |
| Surface | Bright, treated |
| Version for | Wall and support bracket |
| Width | 110 mm |
