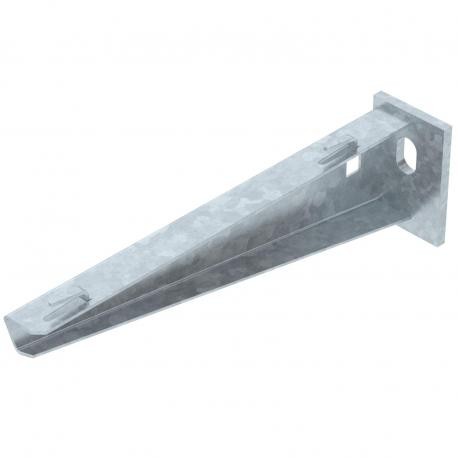

OBO BETTERMANN AW G 15 21 FT AW G 15 21 FT 6420608 OBO BETTERMANN Wall and support bracket for mesh cable tray, B210mm, Hot-dip galvanise.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AW G 15 21 FT 6420608 OBO BETTERMANN Wall and support bracket for mesh cable tray, B210mm, Hot-dip galvanise..

AW G 15 21 FT

6420608

OBO BETTERMANN

1 Pcs.

Wall and support bracket for mesh cable tray, B210mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Wall bracket/profile AW G 15 21 FT, for grid tray B210mm Steel, St, Hot dip galvanized, DIN EN ISO 1461 Wall bracket and AWG profile 15 FT

Cables > Bracket for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A hot-dip galvanized Obo Bettermann AW G 15 21 FT wall and support bracket anchors mesh cable trays securely to walls or channels.

Cantilever arms project outward from vertical surfaces to bear the weight of cable containment systems in industrial settings.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Length (EF001438): 40 mm
  • Width (EF000008): 210 mm
  • Height (EF000040): 60 mm
  • Suitable for cable support system width (EF008339): 200 mm
  • Model (EF000010): Cantilever arm for wall and channel mounting
  • Angle (EF005434): 90 °
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Surface protection (EF000139): Hot dip galvanized

More info

▲
Light-duty wall and support bracket with welded head plate for screwless mesh cable tray fastening.
