AW G 15 11 FT 6420606 OBO BETTERMANN Wall and support bracket for mesh cable tray, B110mm, Hot-dip galvanise..

AW G 15 11 FT

6420606

OBO BETTERMANN

1 Pcs.

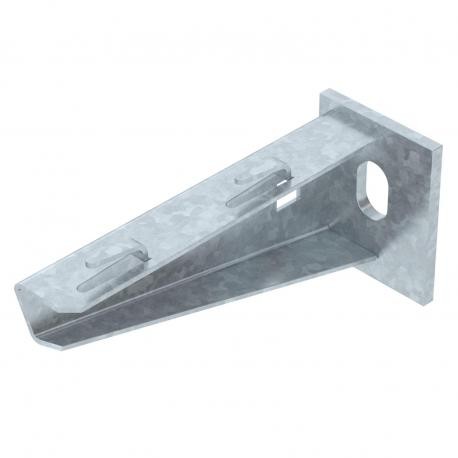

Wall and support bracket for mesh cable tray, B110mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Wall and support bracket AWG 15 FT. Light-duty wall and support bracket with welded head plate for screwless mesh cable tray fastening.

Cables > Bracket for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann wall and support bracket for mesh cable tray supports overhead and wall-mounted cable management runs in industrial and commercial installations. This bracket type provides a stable mounting foundation for routing mesh cable trays securely along building surfaces while maintaining proper clearance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Angle range, max.: 90 mm
  • Angle range, min.: 90 mm
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,2973 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B110mm
  • Dimension A: 40 mm
  • Dimension B: 110 mm
  • Dimension H: 50 mm
  • F in kN: 1,5 kN
  • for width max.: 100 mm
  • for width min.: 100
  • Height: 50 mm
  • Hole diameter: 11 mm
  • Length: 40 mm
  • Maintain electrical functions: no
  • Material: Steel

More info

▲
Angle range, max.90 mm
Angle range, min.90 mm
CO2 Footprint (GWP) Cradle-to-Gate0,2973 kg CO2e / 1 Piece
Colourzinc
DimensionB110mm
Dimension A40 mm
Dimension B110 mm
Dimension H50 mm
F in kN1,5 kN
for width max.100 mm
for width min.100
Height50 mm
Hole diameter11 mm
Length40 mm
Maintain electrical functionsno
MaterialSteel
Rustproof steel, pickledno
SurfaceHot-dip galvanised
Version forWall and support bracket
Width110 mm
