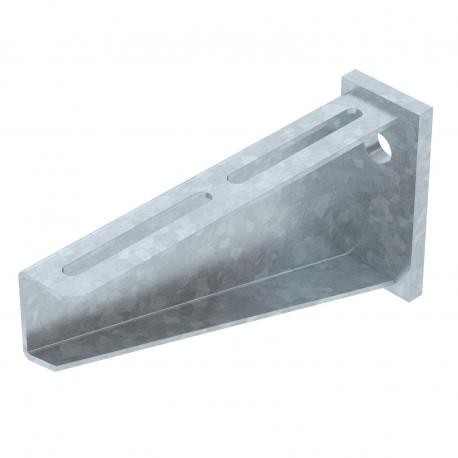

OBO BETTERMANN AW 80 21 FT AW 80 21 FT 6417752 OBO BETTERMANN Wall bracket with welded head plate, B210mm, Hot-dip galvanised, DIN EN I.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AW 80 21 FT 6417752 OBO BETTERMANN Wall bracket with welded head plate, B210mm, Hot-dip galvanised, DIN EN I..

AW 80 21 FT

6417752

OBO BETTERMANN

1 Pcs.

Wall bracket with welded head plate, B210mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Wall bracket AW 80. Heavy-duty wall bracket with welded head plate.

Cables > Bracket for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann wall bracket with welded head plate AW 80 21 FT offers reliable high-load support for industrial cable management networks.

Heavy structural brackets securely anchor cable tray systems to concrete walls and support columns across complex facilities. Final pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Angle range, max.: 90 mm
  • Angle range, min.: 90 mm
  • CO2 Footprint (GWP) Cradle-to-Gate: 2,6672 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B210mm
  • Dimension A: 50 mm
  • Dimension B: 210 mm
  • Dimension H: 110 mm
  • F in kN: 8 kN
  • Height: 110 mm
  • Hole diameter: 17,5 mm
  • Length: 50 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Rustproof steel, pickled: no
  • Surface: Hot-dip galvanised

More info

▲
Angle range, max.90 mm
Angle range, min.90 mm
CO2 Footprint (GWP) Cradle-to-Gate2,6672 kg CO2e / 1 Piece
Colourzinc
DimensionB210mm
Dimension A50 mm
Dimension B210 mm
Dimension H110 mm
F in kN8 kN
Height110 mm
Hole diameter17,5 mm
Length50 mm
Maintain electrical functionsno
MaterialSteel
Rustproof steel, pickledno
SurfaceHot-dip galvanised
Version forWall and support bracket
Width210 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
