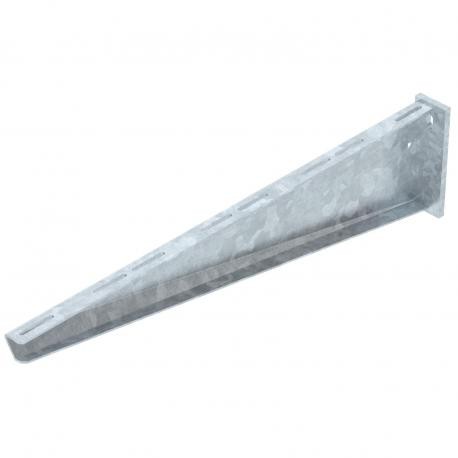

OBO BETTERMANN AW 55 81 FT AW 55 81 FT 6418686 OBO BETTERMANN Wall and support bracket with welded head plate, B810mm, Hot-dip galvanis.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AW 55 81 FT 6418686 OBO BETTERMANN Wall and support bracket with welded head plate, B810mm, Hot-dip galvanis..

AW 55 81 FT

6418686

OBO BETTERMANN

1 Pcs.

Wall and support bracket with welded head plate, B810mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Wall and support bracket AW 55 FT. Heavy-duty wall and support bracket with welded head plate.

Cables > Bracket for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann AW 55 81 FT wall and support bracket with welded head plate is a heavy-duty mounting bracket built to sustain substantial cable tray loads in industrial facilities. Such brackets ensure proper offset and firm attachment for extensive electrical distribution pathways. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Angle range, max.: 90 mm
  • Angle range, min.: 90 mm
  • CO2 Footprint (GWP) Cradle-to-Gate: 11,6569 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B810mm
  • Dimension A: 60 mm
  • Dimension B: 810 mm
  • Dimension H: 195 mm
  • F in kN: 5,5 kN
  • Height: 195 mm
  • Hole diameter: 13,5 mm
  • Length: 60 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Rustproof steel, pickled: no
  • Surface: Hot-dip galvanised

More info

▲
Angle range, max.90 mm
Angle range, min.90 mm
CO2 Footprint (GWP) Cradle-to-Gate11,6569 kg CO2e / 1 Piece
Colourzinc
DimensionB810mm
Dimension A60 mm
Dimension B810 mm
Dimension H195 mm
F in kN5,5 kN
Height195 mm
Hole diameter13,5 mm
Length60 mm
Maintain electrical functionsno
MaterialSteel
Rustproof steel, pickledno
SurfaceHot-dip galvanised
Version forWall and support bracket
Width810 mm
