View larger
Images are for illustrative purposes only. Please refer to data sheet for details

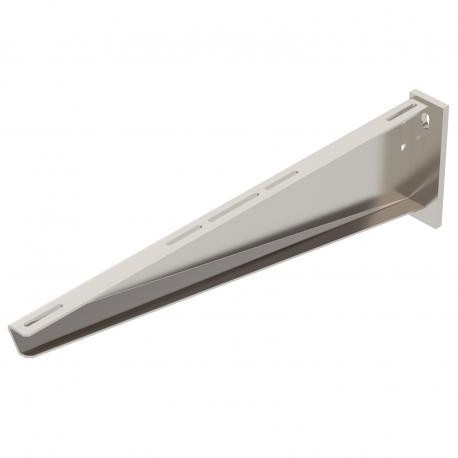

AW 55 71 VA4301 6443083 OBO BETTERMANN Wall and support bracket with welded head plate, 710 mm, Stained, Sta..
AW 55 71 A2
6443083
OBO BETTERMANN
1 Pcs.
Wall and support bracket with welded head plate, 710 mm, Stained, Stainless steel, grade 304, VA, 1.4301
Wall and support bracket AW 55 A2. Heavy-duty wall and support bracket with welded head plate.
Cables > Bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Angle range, max. | 90 mm |
|---|---|
| Angle range, min. | 90 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 26,7406 kg CO2e / 1 Piece |
| Colour | stainless steel |
| Dimension | 710 mm |
| Dimension A | 60 mm |
| Dimension B | 710 mm |
| Dimension H | 195 mm |
| F in kN | 5,5 kN |
| Height | 195 mm |
|---|---|
| Hole diameter | 13,5 mm |
| Length | 60 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Rustproof steel, pickled | yes |
| Surface | Bright, treated |
| Version for | Wall and support bracket |
| Width | 710 mm |
