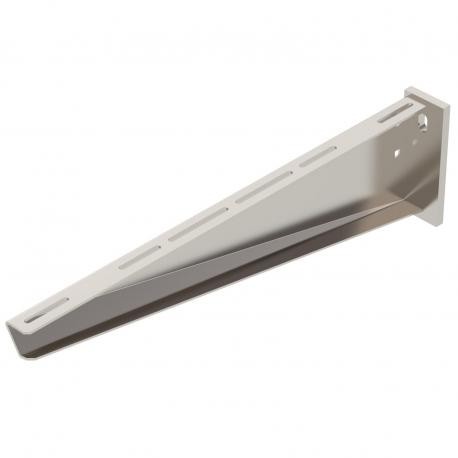

OBO BETTERMANN AW 55 61 A2 AW 55 61 VA4301 6443079 OBO BETTERMANN Wall and support bracket with welded head plate, 610 mm, Stained, Sta.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AW 55 61 VA4301 6443079 OBO BETTERMANN Wall and support bracket with welded head plate, 610 mm, Stained, Sta..

AW 55 61 A2

6443079

OBO BETTERMANN

1 Pcs.

Wall and support bracket with welded head plate, 610 mm, Stained, Stainless steel, grade 304, VA, 1.4301 Wall and support bracket AW 55 A2. Heavy-duty wall and support bracket with welded head plate.

Cables > Bracket for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann wall and support bracket with welded head plate AW 55 61 A2 offers robust cantilever support for heavy cable tray configurations.

Wall brackets are widely deployed in industrial facilities to anchor and suspend cable routing systems above operational floor spaces. Final pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Angle range, max.: 90 mm
  • Angle range, min.: 90 mm
  • CO2 Footprint (GWP) Cradle-to-Gate: 16,9747 kg CO2e / 1 Piece
  • Colour: stainless steel
  • Dimension: 610 mm
  • Dimension A: 60 mm
  • Dimension B: 610 mm
  • Dimension H: 165 mm
  • F in kN: 5,5 kN
  • Height: 165 mm
  • Hole diameter: 13,5 mm
  • Length: 60 mm
  • Maintain electrical functions: no
  • Material: Stainless steel 1.4301
  • Rustproof steel, pickled: yes
  • Surface: Bright, treated

More info

▲
Angle range, max.90 mm
Angle range, min.90 mm
CO2 Footprint (GWP) Cradle-to-Gate16,9747 kg CO2e / 1 Piece
Colourstainless steel
Dimension610 mm
Dimension A60 mm
Dimension B610 mm
Dimension H165 mm
F in kN5,5 kN
Height165 mm
Hole diameter13,5 mm
Length60 mm
Maintain electrical functionsno
MaterialStainless steel 1.4301
Rustproof steel, pickledyes
SurfaceBright, treated
Version forWall and support bracket
Width610 mm
