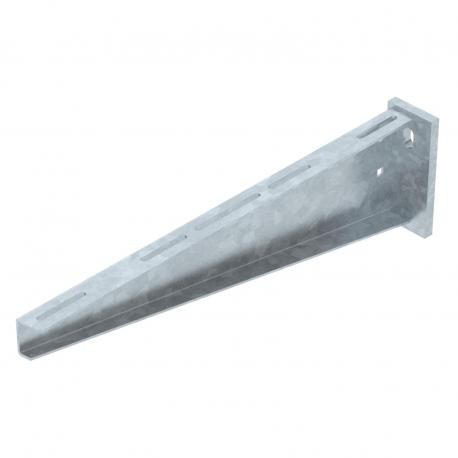

OBO BETTERMANN AW 55 51 FT AW 55 51 FT 6418619 OBO BETTERMANN Wall and support bracket with welded head plate, B510mm, Hot-dip galvanis.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AW 55 51 FT 6418619 OBO BETTERMANN Wall and support bracket with welded head plate, B510mm, Hot-dip galvanis..

AW 55 51 FT

6418619

OBO BETTERMANN

1 Pcs.

Wall and support bracket with welded head plate, B510mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Wall and support bracket AW 55 FT. Heavy-duty wall and support bracket with welded head plate.

Cables > Bracket for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann AW 55 51 FT wall and support bracket with welded head plate provides a solid horizontal cantilever arm designed to extend cable trays away from vertical surfaces. These brackets form an essential part of industrial cable routing architecture by bearing substantial lateral loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Angle range, max.: 90 mm
  • Angle range, min.: 90 mm
  • CO2 Footprint (GWP) Cradle-to-Gate: 6,2958 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B510mm
  • Dimension A: 60 mm
  • Dimension B: 510 mm
  • Dimension H: 145 mm
  • EPD article: yes
  • F in kN: 5,5 kN
  • Height: 145 mm
  • Hole diameter: 13,5 mm
  • Length: 60 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Rustproof steel, pickled: no

More info

▲
Angle range, max.90 mm
Angle range, min.90 mm
CO2 Footprint (GWP) Cradle-to-Gate6,2958 kg CO2e / 1 Piece
Colourzinc
DimensionB510mm
Dimension A60 mm
Dimension B510 mm
Dimension H145 mm
EPD articleyes
F in kN5,5 kN
Height145 mm
Hole diameter13,5 mm
Length60 mm
Maintain electrical functionsno
MaterialSteel
Rustproof steel, pickledno
SurfaceHot-dip galvanised
Version forWall and support bracket
Width510 mm
