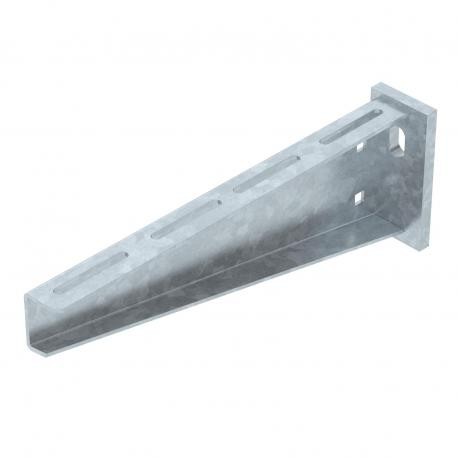

OBO BETTERMANN AW 55 31 FT AW 55 31 FT 6418570 OBO BETTERMANN Wall and support bracket with welded head plate, B310mm, Hot-dip galvanis.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AW 55 31 FT 6418570 OBO BETTERMANN Wall and support bracket with welded head plate, B310mm, Hot-dip galvanis..

AW 55 31 FT

6418570

OBO BETTERMANN

1 Pcs.

Wall and support bracket with welded head plate, B310mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Wall and support bracket AW 55 FT. Heavy-duty wall and support bracket with welded head plate.

Cables > Bracket for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built as a wall and support bracket with welded head plate, the Obo Bettermann AW 55 31 FT secures heavy cable tray runs along structural walls in plants and commercial facilities. Brackets with integrated head plates distribute applied mechanical loads evenly across mounting surfaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Angle range, max.: 90 mm
  • Angle range, min.: 90 mm
  • CO2 Footprint (GWP) Cradle-to-Gate: 3,1929 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B310mm
  • Dimension A: 50 mm
  • Dimension B: 310 mm
  • Dimension H: 110 mm
  • EPD article: yes
  • F in kN: 5,5 kN
  • Height: 110 mm
  • Hole diameter: 13,5 mm
  • Length: 50 mm
  • Maintain electrical functions: yes
  • Material: Steel
  • Rustproof steel, pickled: no

More info

▲
Angle range, max.90 mm
Angle range, min.90 mm
CO2 Footprint (GWP) Cradle-to-Gate3,1929 kg CO2e / 1 Piece
Colourzinc
DimensionB310mm
Dimension A50 mm
Dimension B310 mm
Dimension H110 mm
EPD articleyes
F in kN5,5 kN
Height110 mm
Hole diameter13,5 mm
Length50 mm
Maintain electrical functionsyes
MaterialSteel
Rustproof steel, pickledno
SurfaceHot-dip galvanised
Version forWall and support bracket
Width310 mm
