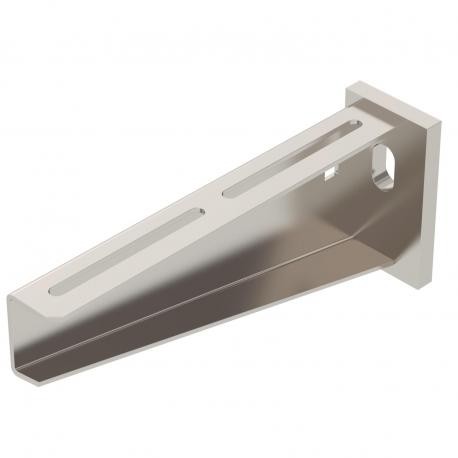

AW 55 21 A2 6443063 OBO BETTERMANN Wall and support bracket with welded head plate, B210mm, Stained, Stainle..
AW 55 21 A2
6443063
OBO BETTERMANN
1 Pcs.
Cables > Bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann wall and support bracket with welded head plate, part number AW 55 21 A2, acts as a cantilevered arm for holding cable trays and wire management assemblies against walls or structural channels. These corrosion-resistant brackets ensure robust mechanical support in specialized plant environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Length (EF001438): 50 mm
- Width (EF000008): 210 mm
- Height (EF000040): 90 mm
- Model (EF000010): Cantilever arm for wall and channel mounting
- Angle (EF005434): 90 °
- Suitable for circuit integrity (EF007806): No
- Material (EF002169): Stainless steel
- Material quality (EF001257): Stainless steel 304 (1.4301)
- Surface protection (EF000139): Untreated
More info
▲| Angle range, max. | 90 mm |
|---|---|
| Angle range, min. | 90 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,4789 kg CO2e / 1 Piece |
| Colour | stainless steel |
| Dimension | B210mm |
| Dimension A | 50 mm |
| Dimension B | 210 mm |
| Dimension H | 90 mm |
| F in kN | 5,5 kN |
| Height | 90 mm |
|---|---|
| Hole diameter | 13,5 mm |
| Length | 50 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Rustproof steel, pickled | yes |
| Surface | Bright, treated |
| Version for | Wall and support bracket |
| Width | 210 mm |
