View larger
Images are for illustrative purposes only. Please refer to data sheet for details

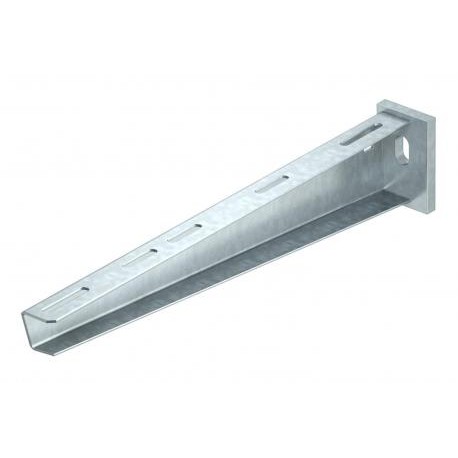

AW 30 41 FT 6419763 OBO BETTERMANN Wall and support bracket with welded head plate, B410mm, Hot-dip galvanis..
AW 30 41 FT
6419763
OBO BETTERMANN
1 Pcs.
Wall and support bracket with welded head plate, B410mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Wall and support bracket AW 30 FT. Medium-duty wall and support bracket with welded head plate.
Cables > Bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Angle range, max. | 90 mm |
|---|---|
| Angle range, min. | 90 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,9601 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | B410mm |
| Dimension A | 50 mm |
| Dimension B | 410 mm |
| Dimension H | 80 mm |
| EPD article | yes |
| F in kN | 3 kN |
| Height | 80 mm |
|---|---|
| Hole diameter | 13 mm |
| Length | 50 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Rustproof steel, pickled | no |
| Surface | Hot-dip galvanised |
| Version for | Wall and support bracket |
| Width | 410 mm |
