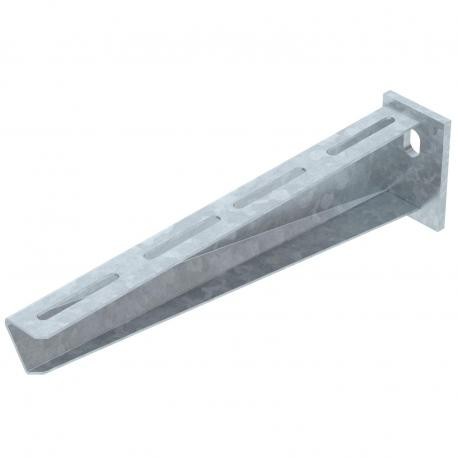

OBO BETTERMANN AW 30 31 FT AW 30 31 FT 6419747 OBO BETTERMANN Wall and support bracket with welded head plate, B310mm, Hot-dip galvanis.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AW 30 31 FT 6419747 OBO BETTERMANN Wall and support bracket with welded head plate, B310mm, Hot-dip galvanis..

AW 30 31 FT

6419747

OBO BETTERMANN

1 Pcs.

Wall and support bracket with welded head plate, B310mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Wall and support bracket AW 30 FT. Medium-duty wall and support bracket with welded head plate.

Cables > Bracket for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Wall and support bracket with welded head plate AW 30 31 FT by Obo Bettermann functions as a dependable anchor for routing power and data cables across industrial facilities. This bracket supports safe and efficient cable management.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Angle range, max.: 90 mm
  • Angle range, min.: 90 mm
  • CO2 Footprint (GWP) Cradle-to-Gate: 1,4164 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B310mm
  • Dimension A: 50 mm
  • Dimension B: 310 mm
  • Dimension H: 80 mm
  • EPD article: yes
  • F in kN: 3 kN
  • Height: 80 mm
  • Hole diameter: 13 mm
  • Length: 50 mm
  • Maintain electrical functions: yes
  • Material: Steel
  • Rustproof steel, pickled: no

More info

▲
Angle range, max.90 mm
Angle range, min.90 mm
CO2 Footprint (GWP) Cradle-to-Gate1,4164 kg CO2e / 1 Piece
Colourzinc
DimensionB310mm
Dimension A50 mm
Dimension B310 mm
Dimension H80 mm
EPD articleyes
F in kN3 kN
Height80 mm
Hole diameter13 mm
Length50 mm
Maintain electrical functionsyes
MaterialSteel
Rustproof steel, pickledno
SurfaceHot-dip galvanised
Version forWall and support bracket
Width310 mm
