View larger
Images are for illustrative purposes only. Please refer to data sheet for details

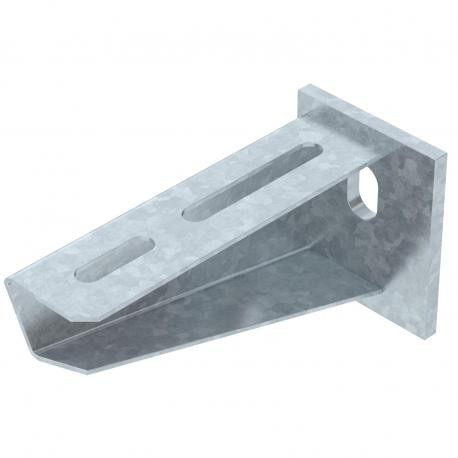

AW 30 11 FT 6419704 OBO BETTERMANN Wall and support bracket with welded head plate, B110mm, Hot-dip galvanis..
AW 30 11 FT
6419704
OBO BETTERMANN
1 Pcs.
Wall and support bracket with welded head plate, B110mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Wall bracket/profile AW 30 11 FT, with welded head B110mm Steel, St, Hot dipped galvanized, DIN EN ISO 1461
Wall and support bracket AW 30 FT. Medium-duty wall and support bracket with welded head plate.
Cables > Bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Angle range, max. | 90 mm |
|---|---|
| Angle range, min. | 90 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5485 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | B110mm |
| Dimension A | 50 mm |
| Dimension B | 110 mm |
| Dimension H | 60 mm |
| EPD article | yes |
| F in kN | 3 kN |
| Height | 60 mm |
|---|---|
| Hole diameter | 11 mm |
| Length | 50 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Rustproof steel, pickled | no |
| Surface | Hot-dip galvanised |
| Version for | Wall and support bracket |
| Width | 110 mm |
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 50 mm |
| Width (EF000008) | 110 mm |
| Height (EF000040) | 60 mm |
| Model (EF000010) | Cantilever arm for wall and channel mounting |
| Angle (EF005434) | 90 ° |
| Suitable for circuit integrity (EF007806) | Yes |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Hot dip galvanized |
