AW 15 31 VA4301 6421032 OBO BETTERMANN Wall and support bracket with welded head plate, B310mm, Stained, Sta..
AW 15 31 A2
6421032
OBO BETTERMANN
1 Pcs.
Cables > Bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

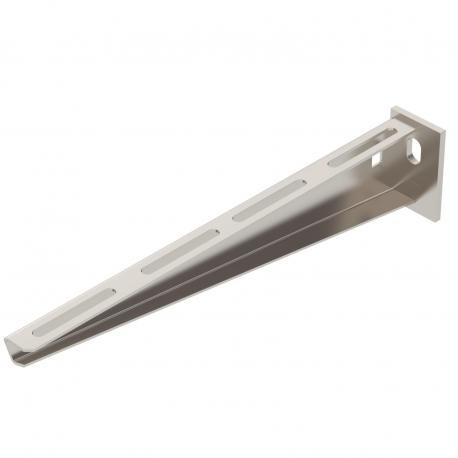

Manufactured with a welded head plate, the Obo Bettermann AW 15 31 A2 wall and support bracket offers dependable stainless steel mounting performance for commercial cable routing. Wall brackets sustain horizontal loads for cable management infrastructure in specialized environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Angle range, max.: 90 mm
- Angle range, min.: 90 mm
- CO2 Footprint (GWP) Cradle-to-Gate: 2,4908 kg CO2e / 1 Piece
- Colour: stainless steel
- Dimension: B310mm
- Dimension A: 40 mm
- Dimension B: 310 mm
- Dimension H: 65 mm
- F in kN: 1,5 kN
- Height: 65 mm
- Hole diameter: 11 mm
- Length: 40 mm
- Maintain electrical functions: no
- Material: Stainless steel 1.4301
- Rustproof steel, pickled: yes
- Surface: Bright, treated
More info
▲| Angle range, max. | 90 mm |
|---|---|
| Angle range, min. | 90 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,4908 kg CO2e / 1 Piece |
| Colour | stainless steel |
| Dimension | B310mm |
| Dimension A | 40 mm |
| Dimension B | 310 mm |
| Dimension H | 65 mm |
| F in kN | 1,5 kN |
| Height | 65 mm |
|---|---|
| Hole diameter | 11 mm |
| Length | 40 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Rustproof steel, pickled | yes |
| Surface | Bright, treated |
| Version for | Wall and support bracket |
| Width | 310 mm |
