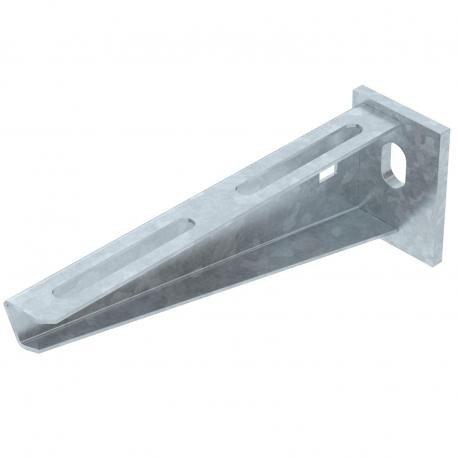

OBO BETTERMANN AW 15 16 FT AW 15 16 FT 6420664 OBO BETTERMANN Wall and support bracket with welded head plate, B160mm, Hot-dip galvanis.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AW 15 16 FT 6420664 OBO BETTERMANN Wall and support bracket with welded head plate, B160mm, Hot-dip galvanis..

AW 15 16 FT

6420664

OBO BETTERMANN

1 Pcs.

Wall and support bracket with welded head plate, B160mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Wall and support bracket AW 15 FT. Light-duty wall and support bracket with welded head plate.

Cables > Bracket for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann AW 15 16 FT wall and support bracket with welded head plate is a standard structural support component used to anchor cable trays to walls. It provides the necessary offset and weight-bearing capability for typical facility wiring layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Angle range, max.: 90 mm
  • Angle range, min.: 90 mm
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,4647 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B160mm
  • Dimension A: 40 mm
  • Dimension B: 160 mm
  • Dimension H: 55 mm
  • Dimension W: 160 mm
  • EPD article: yes
  • F in kN: 1,5 kN
  • Height: 2,17 in
  • Height: 55 mm
  • Hole diameter: 11 mm
  • Length: 40 mm
  • Maintain electrical functions: yes

More info

▲
Angle range, max.90 mm
Angle range, min.90 mm
CO2 Footprint (GWP) Cradle-to-Gate0,4647 kg CO2e / 1 Piece
Colourzinc
DimensionB160mm
Dimension A40 mm
Dimension B160 mm
Dimension H55 mm
Dimension W160 mm
EPD articleyes
F in kN1,5 kN
Height2,17 in
Height55 mm
Hole diameter11 mm
Length40 mm
Maintain electrical functionsyes
MaterialSteel
Rustproof steel, pickledno
SurfaceHot-dip galvanised
Version forWall and support bracket
Width6 in
Width160 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
