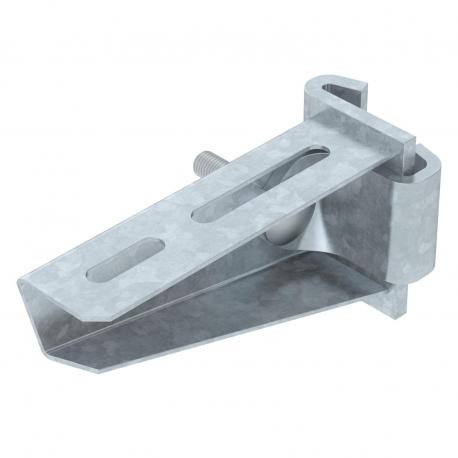

OBO BETTERMANN AS 30 11 FT AS 30 11 FT 6419370 OBO BETTERMANN Support bracket for IS 8 support, B110mm, Hot-dip galvanised, DIN EN ISO .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AS 30 11 FT 6419370 OBO BETTERMANN Support bracket for IS 8 support, B110mm, Hot-dip galvanised, DIN EN ISO ..

AS 30 11 FT

6419370

OBO BETTERMANN

1 Pcs.

Support bracket for IS 8 support, B110mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Support bracket AS 30. Medium-duty support bracket for infinitely adjustable fastening on IS 8 support.

Cables > Bracket for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This component is an Obo Bettermann AS 30 11 FT support bracket for IS 8 support, created to facilitate stable mechanical connections within comprehensive structural framing systems. Support brackets are routinely deployed in electrical installations to anchor auxiliary hardware, support trays, and maintain proper alignment across support channels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,7691 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B110mm
  • Dimension A: 41 mm
  • Dimension B: 110 mm
  • Dimension H: 60 mm
  • F in kN: 3 kN
  • Height: 60 mm
  • Length: 41 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Rustproof steel, pickled: no
  • Surface: Hot-dip galvanised
  • Version for: Support bracket
  • Width: 110 mm

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,7691 kg CO2e / 1 Piece
Colourzinc
DimensionB110mm
Dimension A41 mm
Dimension B110 mm
Dimension H60 mm
F in kN3 kN
Height60 mm
Length41 mm
Maintain electrical functionsno
MaterialSteel
Rustproof steel, pickledno
SurfaceHot-dip galvanised
Version forSupport bracket
Width110 mm
