View larger
Images are for illustrative purposes only. Please refer to data sheet for details

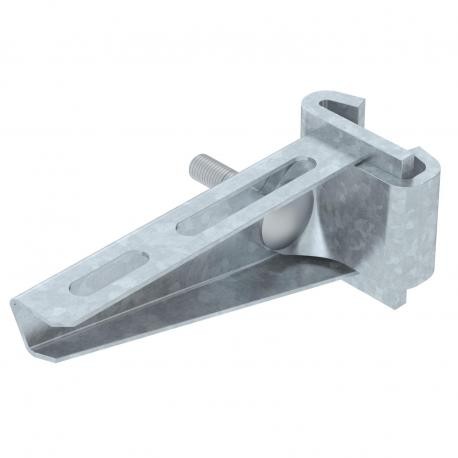

AS 15 11 FT 6421326 OBO BETTERMANN Support bracket for IS 8 support, B110mm, Hot-dip galvanised, DIN EN ISO ..
AS 15 11 FT
6421326
OBO BETTERMANN
1 Pcs.
Support bracket for IS 8 support, B110mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Support bracket AS 15. Light-duty support bracket for infinitely adjustable fastening on IS 8 support.
Cables > Bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,6504 kg CO2e / 1 Piece |
|---|---|
| Colour | zinc |
| Dimension | B110mm |
| Dimension A | 41 mm |
| Dimension B | 110 mm |
| Dimension H | 50 mm |
| EPD article | yes |
| F in kN | 1,5 kN |
| Height | 50 mm |
|---|---|
| Length | 41 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rustproof steel, pickled | no |
| Surface | Hot-dip galvanised |
| Version for | Support bracket |
| Width | 110 mm |
