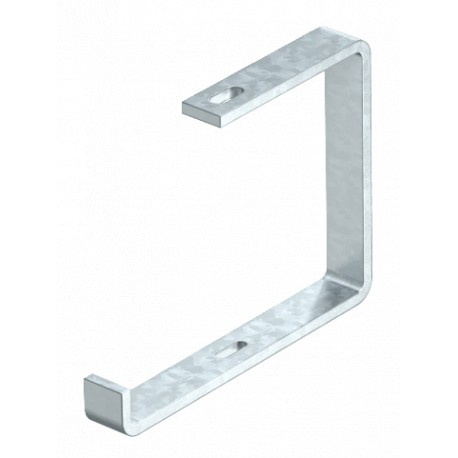

OBO BETTERMANN AHB 200 FT AHB 200 FT 6363911 OBO BETTERMANN Ceiling bracket flat steel, B200mm, Hot-dip galvanised, DIN EN ISO 1461, S.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AHB 200 FT 6363911 OBO BETTERMANN Ceiling bracket flat steel, B200mm, Hot-dip galvanised, DIN EN ISO 1461, S..

AHB 200 FT

6363911

OBO BETTERMANN

1 Pcs.

Ceiling bracket flat steel, B200mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Ceiling bracket FT. Suspension bracket for cable support systems.

Cables > Wall- and ceiling bracket for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A ceiling bracket flat steel supports cable trays and raceways along architectural structures, delivering rigid fixation points for industrial and commercial wire management. These brackets ensure proper load transfer to walls or ceilings. The Obo Bettermann AHB 200 FT provides resilient hot-dip galvanised steel construction.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Adjustable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 2,1613 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B200mm
  • Dimension B: 215 mm
  • F in kN ceiling: 0,6 kN
  • for width max.: 200 mm
  • for width min.: 200
  • Height: 180 mm
  • Hole diameter: 11 mm
  • Length: 30 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Material thickness: 8 mm
  • Suitable for cable ladder: no
  • Suitable for cable tray: yes

More info

▲
Adjustableno
CO2 Footprint (GWP) Cradle-to-Gate2,1613 kg CO2e / 1 Piece
Colourzinc
DimensionB200mm
Dimension B215 mm
F in kN ceiling0,6 kN
for width max.200 mm
for width min.200
Height180 mm
Hole diameter11 mm
Length30 mm
Maintain electrical functionsno
MaterialSteel
Material thickness8 mm
Suitable for cable ladderno
Suitable for cable trayyes
Suitable for mesh cable trayno
Suitable for metric threaded rod10
SurfaceHot-dip galvanised
Tray fasteningScrew-on
Version forSuspension bracket (C clamp)
Width231 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
