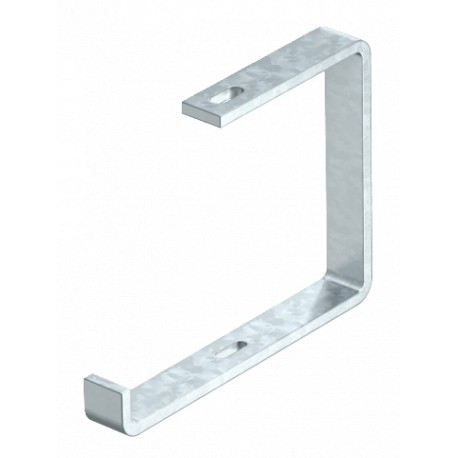

AHB 150 FT 6363907 OBO BETTERMANN Ceiling bracket flat steel, B150mm, Hot-dip galvanised, DIN EN ISO 1461, S..
AHB 150 FT
6363907
OBO BETTERMANN
1 Pcs.
Ceiling bracket flat steel, B150mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Ceiling bracket FT. Suspension bracket for cable support systems.
Cables > Wall- and ceiling bracket for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Obo Bettermann AHB 150 FT Ceiling bracket flat steel, B150mm, Hot-dip galvanised, DIN EN ISO 1461, S.. provides a rigid anchor point for extending electrical pathway supports away from overhead structures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Adjustable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 1,8691 kg CO2e / 1 Piece
- Colour: zinc
- Dimension: B150mm
- Dimension B: 165 mm
- F in kN ceiling: 0,6 kN
- for width max.: 150 mm
- for width min.: 150
- Height: 180 mm
- Hole diameter: 11 mm
- Length: 30 mm
- Maintain electrical functions: no
- Material: Steel
- Material thickness: 8 mm
- Suitable for cable ladder: no
- Suitable for cable tray: yes
More info
▲| Adjustable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 1,8691 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | B150mm |
| Dimension B | 165 mm |
| F in kN ceiling | 0,6 kN |
| for width max. | 150 mm |
| for width min. | 150 |
| Height | 180 mm |
| Hole diameter | 11 mm |
| Length | 30 mm |
| Maintain electrical functions | no |
|---|---|
| Material | Steel |
| Material thickness | 8 mm |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | no |
| Suitable for metric threaded rod | 10 |
| Surface | Hot-dip galvanised |
| Tray fastening | Screw-on |
| Version for | Suspension bracket (C clamp) |
| Width | 181 mm |
