OBO BETTERMANN LGVG 60 FT LGVG 60 FT 6208944 OBO BETTERMANN Adjustable connector for cable ladder, 64x210, Hot-dip galvanised, DIN EN .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LGVG 60 FT 6208944 OBO BETTERMANN Adjustable connector for cable ladder, 64x210, Hot-dip galvanised, DIN EN ..

LGVG 60 FT

6208944

OBO BETTERMANN

10 Pcs.

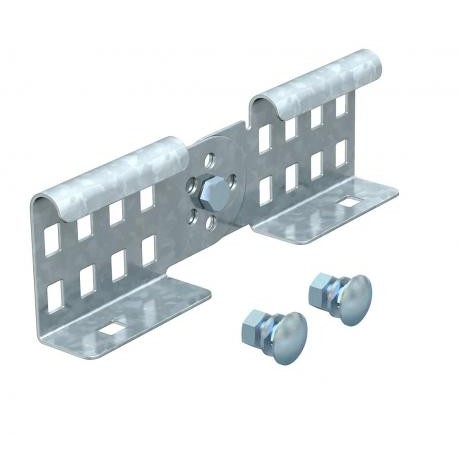

Adjustable connector for cable ladder, 64x210, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Adjustable connector FT. Adjustable connector as external connector to join cable ladders and fittings with a side height of 60 mm and continuous rail perforation. Angle can be adjusted vertically.

Cables > Connector for cable support system
Ladder Tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann part number LGVG 60 FT is an adjustable connector for cable ladder, designed to provide flexible alignment for heavy-duty ladder routing systems. Adjustable ladder connectors allow installers to accommodate vertical shifts and angles in large industrial cable management networks. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Adjustable connector, horizontal: no
  • Articulated connector, vertical: yes
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,8298 kg CO2e / 1 Piece
  • Colour: zinc
  • Connection type: Screw connector
  • Dimension: 64x210
  • Dimension: 64x210
  • Height: 60 mm
  • Length: 210 mm
  • Material: Steel
  • Plate thickness: 1,5 mm
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: yes
  • Suitable for cable tray: no
  • Suitable for cable tray system height: 60 mm
  • Suitable for mesh cable tray: no

More info

▲
Adjustable connector, horizontalno
Articulated connector, verticalyes
CO2 Footprint (GWP) Cradle-to-Gate0,8298 kg CO2e / 1 Piece
Colourzinc
Connection typeScrew connector
Dimension64x210
Dimension64x210
Height60 mm
Length210 mm
MaterialSteel
Plate thickness1,5 mm
Rustproof steel, pickledno
Suitable for cable ladderyes
Suitable for cable trayno
Suitable for cable tray system height60 mm
Suitable for mesh cable trayno
SurfaceHot-dip galvanised
Version forStraight and angle connector
Width28 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
