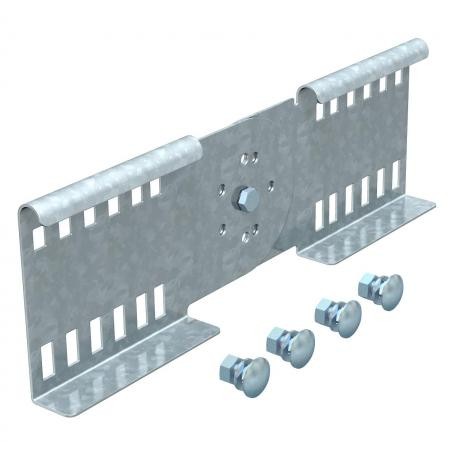

OBO BETTERMANN LGVG 110 FT LGVG 110 FT 6216653 OBO BETTERMANN Adjustable connector for cable ladder, 114x360, Hot-dip galvanised, DIN E.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LGVG 110 FT 6216653 OBO BETTERMANN Adjustable connector for cable ladder, 114x360, Hot-dip galvanised, DIN E..

LGVG 110 FT

6216653

OBO BETTERMANN

10 Pcs.

Adjustable connector for cable ladder, 114x360, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Adjustable connector FT. Adjustable connector as internal connector to join cable ladders and fittings with a side height of 110 mm. Angle can be adjusted vertically.

Cables > Connector for cable support system
Ladder Tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann Adjustable connector for cable ladder, identified by part number LGVG 110 FT, permits flexible articulation when routing heavy-duty industrial cable systems across changing elevations. Articulated joining components make complex facility layouts feasible without custom fabrication. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Adjustable connector, horizontal: no
  • Articulated connector, vertical: yes
  • CO2 Footprint (GWP) Cradle-to-Gate: 2,2694 kg CO2e / 1 Piece
  • Colour: zinc
  • Connection type: Screw connector
  • Dimension: 114x360
  • Dimension: 314x360
  • Height: 110 mm
  • Length: 360 mm
  • Material: Steel
  • Plate thickness: 1,5 mm
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: yes
  • Suitable for cable tray: no
  • Suitable for cable tray system height: 110 mm
  • Suitable for mesh cable tray: no

More info

▲
Adjustable connector, horizontalno
Articulated connector, verticalyes
CO2 Footprint (GWP) Cradle-to-Gate2,2694 kg CO2e / 1 Piece
Colourzinc
Connection typeScrew connector
Dimension114x360
Dimension314x360
Height110 mm
Length360 mm
MaterialSteel
Plate thickness1,5 mm
Rustproof steel, pickledno
Suitable for cable ladderyes
Suitable for cable trayno
Suitable for cable tray system height110 mm
Suitable for mesh cable trayno
SurfaceHot-dip galvanised
Version forStraight and angle connector
Width28 mm

Product Datasheet
