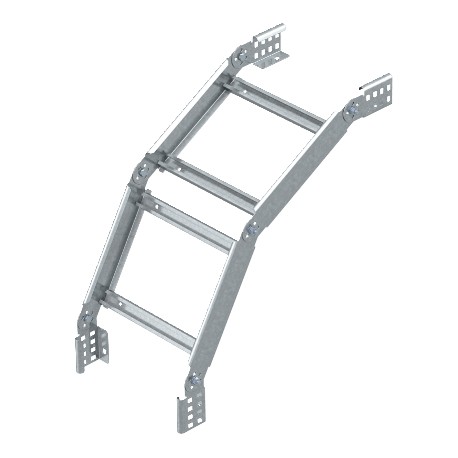

OBO BETTERMANN LGBV 640 VS FT LGBV 640 VS FT 6213340 OBO BETTERMANN Articulated bend vertical, with VS rungs, 60x400, Hot-dip galvanised, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LGBV 640 VS FT 6213340 OBO BETTERMANN Articulated bend vertical, with VS rungs, 60x400, Hot-dip galvanised, ..

LGBV 640 VS FT

6213340

OBO BETTERMANN

1 Pcs.

Articulated bend vertical, with VS rungs, 60x400, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Adjustable bend, vertical, VS 60 FT. 90° adjustable vertical bend, for cable ladders with medium-duty rung (VS) and a side height of 60 mm.Additional widths are available on request.

Cables > Bend for cable ladder
Ladder Tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An articulated bend vertical, with VS rungs produced by Obo Bettermann, part number LGBV 640 VS FT. Vertical bend fittings are implemented to alter the elevation angle of cable runs across industrial facility layouts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend (angle): 90°
  • CO2 Footprint (GWP) Cradle-to-Gate: 8,7218 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: 60x400
  • Height: 60 mm
  • Hinged: yes
  • Maintain electrical functions: no
  • Material: Steel
  • Rail thickness: 1,5 mm
  • Rustproof steel, pickled: no
  • Side perforation: no
  • Side rail version: Flat profile
  • Surface: Hot-dip galvanised
  • Version of the rungs: Profile unperforated
  • Wide-span version: no
  • Width: 400 mm

More info

▲
Bend (angle)90°
CO2 Footprint (GWP) Cradle-to-Gate8,7218 kg CO2e / 1 Piece
Colourzinc
Dimension60x400
Height60 mm
Hingedyes
Maintain electrical functionsno
MaterialSteel
Rail thickness1,5 mm
Rustproof steel, pickledno
Side perforationno
Side rail versionFlat profile
SurfaceHot-dip galvanised
Version of the rungsProfile unperforated
Wide-span versionno
Width400 mm
