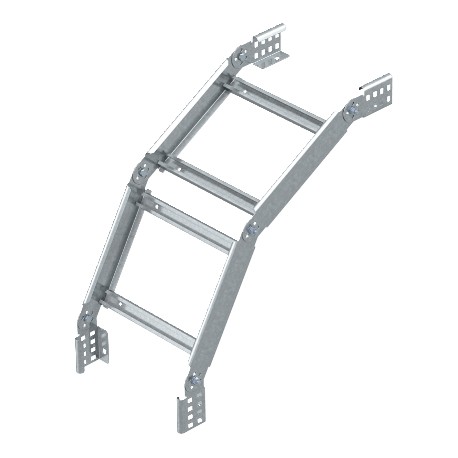

OBO BETTERMANN LGBV 640 VS FS LGBV 640 VS FS 6213243 OBO BETTERMANN Articulated bend vertical, with VS rungs, 60x400, Strip-galvanised, DI.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LGBV 640 VS FS 6213243 OBO BETTERMANN Articulated bend vertical, with VS rungs, 60x400, Strip-galvanised, DI..

LGBV 640 VS FS

6213243

OBO BETTERMANN

1 Pcs.

Articulated bend vertical, with VS rungs, 60x400, Strip-galvanised, DIN EN 10147, Steel, St Adjustable bend, vertical, VS 60 FS. 90° adjustable vertical bend, for cable ladders with medium-duty rung (VS) and a side height of 60 mm.Additional widths are available on request.

Cables > Bend for cable ladder
Ladder Tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An articulated bend vertical, with VS rungs manufactured by Obo Bettermann under part number LGBV 640 VS FS. Strip-galvanised adjustable fittings support clean directional changes in vertical cable management runs.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend (angle): 90°
  • CO2 Footprint (GWP) Cradle-to-Gate: 9,4031 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: 60x400
  • Height: 60 mm
  • Hinged: yes
  • Maintain electrical functions: no
  • Material: Steel
  • Rail thickness: 1,5 mm
  • Rustproof steel, pickled: no
  • Side perforation: no
  • Side rail version: Flat profile
  • Surface: Strip galvanized
  • Version of the rungs: Profile unperforated
  • Wide-span version: no
  • Width: 400 mm

More info

▲
Bend (angle)90°
CO2 Footprint (GWP) Cradle-to-Gate9,4031 kg CO2e / 1 Piece
Colourzinc
Dimension60x400
Height60 mm
Hingedyes
Maintain electrical functionsno
MaterialSteel
Rail thickness1,5 mm
Rustproof steel, pickledno
Side perforationno
Side rail versionFlat profile
SurfaceStrip galvanized
Version of the rungsProfile unperforated
Wide-span versionno
Width400 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
