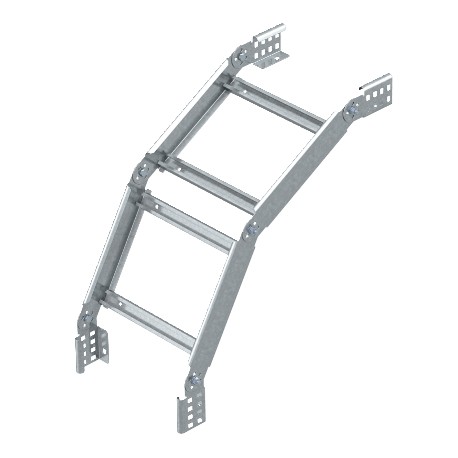

OBO BETTERMANN LGBV 630 VS FS LGBV 630 VS FS 6213235 OBO BETTERMANN Articulated bend vertical, with VS rungs, 60x300, Strip-galvanised, DI.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LGBV 630 VS FS 6213235 OBO BETTERMANN Articulated bend vertical, with VS rungs, 60x300, Strip-galvanised, DI..

LGBV 630 VS FS

6213235

OBO BETTERMANN

1 Pcs.

Articulated bend vertical, with VS rungs, 60x300, Strip-galvanised, DIN EN 10147, Steel, St Adjustable bend, vertical, VS 60 FS. 90° adjustable vertical bend, for cable ladders with medium-duty rung (VS) and a side height of 60 mm.Additional widths are available on request.

Cables > Bend for cable ladder
Ladder Tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An articulated bend vertical, with VS rungs from Obo Bettermann, designated as LGBV 630 VS FS. Strip-galvanised hinged vertical bends enable installers to adjust vertical routing angles smoothly within electrical tray systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend (angle): 90°
  • CO2 Footprint (GWP) Cradle-to-Gate: 8,662 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: 60x300
  • Height: 60 mm
  • Hinged: yes
  • Maintain electrical functions: no
  • Material: Steel
  • Rail thickness: 1,5 mm
  • Rustproof steel, pickled: no
  • Side perforation: no
  • Side rail version: Flat profile
  • Surface: Strip galvanized
  • Version of the rungs: Profile unperforated
  • Wide-span version: no
  • Width: 300 mm

More info

▲
Bend (angle)90°
CO2 Footprint (GWP) Cradle-to-Gate8,662 kg CO2e / 1 Piece
Colourzinc
Dimension60x300
Height60 mm
Hingedyes
Maintain electrical functionsno
MaterialSteel
Rail thickness1,5 mm
Rustproof steel, pickledno
Side perforationno
Side rail versionFlat profile
SurfaceStrip galvanized
Version of the rungsProfile unperforated
Wide-span versionno
Width300 mm
