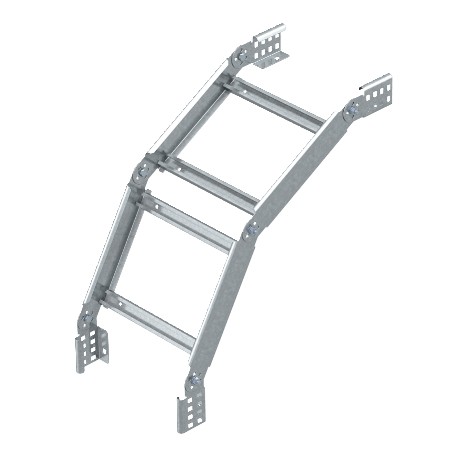

OBO BETTERMANN LGBV 620 VS FT LGBV 620 VS FT 6213324 OBO BETTERMANN Articulated bend vertical, with VS rungs, 60x200, Hot-dip galvanised, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LGBV 620 VS FT 6213324 OBO BETTERMANN Articulated bend vertical, with VS rungs, 60x200, Hot-dip galvanised, ..

LGBV 620 VS FT

6213324

OBO BETTERMANN

1 Pcs.

Articulated bend vertical, with VS rungs, 60x200, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Adjustable bend, vertical, VS 60 FT. 90° adjustable vertical bend, for cable ladders with medium-duty rung (VS) and a side height of 60 mm.Additional widths are available on request.

Cables > Bend for cable ladder
Ladder Tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An articulated bend vertical, with VS rungs manufactured by Obo Bettermann, part number LGBV 620 VS FT. Hinged vertical fittings provide customizable angle changes for standard industrial cable tray runs.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend (angle): 90°
  • CO2 Footprint (GWP) Cradle-to-Gate: 7,3001 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: 60x200
  • Height: 60 mm
  • Hinged: yes
  • Maintain electrical functions: no
  • Material: Steel
  • Rail thickness: 1,5 mm
  • Rustproof steel, pickled: no
  • Side perforation: no
  • Side rail version: Flat profile
  • Surface: Hot-dip galvanised
  • Version of the rungs: Profile unperforated
  • Wide-span version: no
  • Width: 200 mm

More info

▲
Bend (angle)90°
CO2 Footprint (GWP) Cradle-to-Gate7,3001 kg CO2e / 1 Piece
Colourzinc
Dimension60x200
Height60 mm
Hingedyes
Maintain electrical functionsno
MaterialSteel
Rail thickness1,5 mm
Rustproof steel, pickledno
Side perforationno
Side rail versionFlat profile
SurfaceHot-dip galvanised
Version of the rungsProfile unperforated
Wide-span versionno
Width200 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
