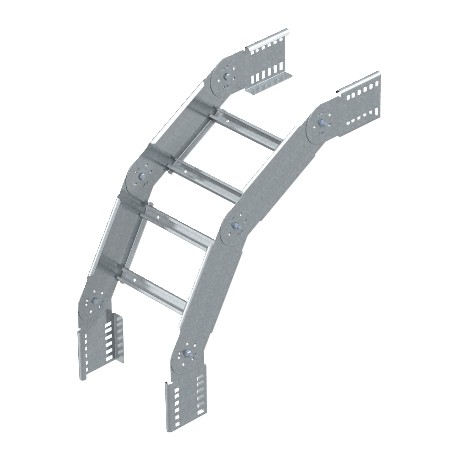

OBO BETTERMANN LGBV 113 VS FT LGBV 113 VS FT 6218946 OBO BETTERMANN Articulated bend vertical, with VS rungs, 110x300, Hot-dip galvanised,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LGBV 113 VS FT 6218946 OBO BETTERMANN Articulated bend vertical, with VS rungs, 110x300, Hot-dip galvanised,..

LGBV 113 VS FT

6218946

OBO BETTERMANN

1 Pcs.

Articulated bend vertical, with VS rungs, 110x300, Hot-dip galvanised, DIN EN ISO 1461, Steel, St 90° adjustable bend, vertical 110 FT. 90° adjustable vertical bend, for all cable ladder types with a side height of 110 mm.

Cables > Bend for cable ladder
Ladder Tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An articulated bend vertical, with VS rungs built by Obo Bettermann, reference LGBV 113 VS FT. These adjustable vertical fittings direct cable trays securely across complex multi-level industrial routes.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 13,6301 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: 110x300
  • Height: 110 mm
  • Hinged: yes
  • Maintain electrical functions: no
  • Material: Steel
  • Rail thickness: 1,5 mm
  • Rustproof steel, pickled: no
  • Side perforation: no
  • Side rail version: Flat profile
  • Surface: Hot-dip galvanised
  • Version of the rungs: Profile unperforated
  • Wide-span version: no
  • Width: 300 mm

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate13,6301 kg CO2e / 1 Piece
Colourzinc
Dimension110x300
Height110 mm
Hingedyes
Maintain electrical functionsno
MaterialSteel
Rail thickness1,5 mm
Rustproof steel, pickledno
Side perforationno
Side rail versionFlat profile
SurfaceHot-dip galvanised
Version of the rungsProfile unperforated
Wide-span versionno
Width300 mm
