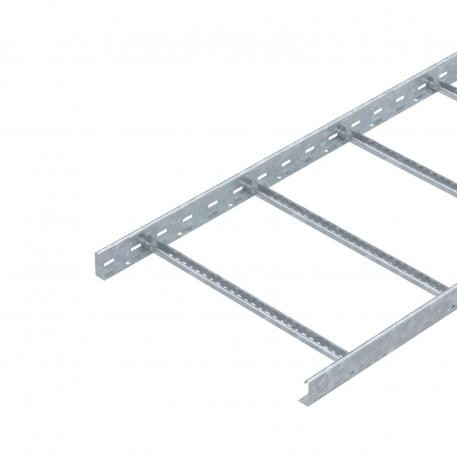

LG 660 VS 3 FT 6208578 OBO BETTERMANN Cable ladder perforated, with VS rungs, 60x600x3000, Hot-dip galvanise..
LG 660 VS 3 FT
6208578
OBO BETTERMANN
3 m.
Cable ladder perforated, with VS rungs, 60x600x3000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
LG 660 VS 3 FT ladder tray, perforated, with step VS 60x600x3000 Steel, St, hot-dip galvanized, DIN EN ISO 1461
Cable ladder LG 60, 3 m VS FT
Cables > Cable ladder/wide span cable ladder
Ladder Tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
The cable ladder is shipped folded up.
You can find the appropriate clamp clip of type 2056 in the Ladder systems section.
You can find the appropriate clamp clip of type 2056 in the Ladder systems section.
| Feature Name | Feature Value |
|---|---|
| Type of side joist (EF007666) | Flat profile |
| Side perforation (EF001122) | Yes |
| Type of rung (EF001060) | Slotted channel |
| Fixation rung (EF008307) | Blind riveted |
| Height (EF000040) | 60 mm |
| Width (EF000008) | 600 mm |
| Length (EF001438) | 3000 mm |
| Useful cross section (EF005140) | 29800 mm² |
| Suitable for circuit integrity (EF007806) | No |
| Rung centre spacing (EF008185) | 300 mm |
| Vertical cable ladder (EF017249) | Yes |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Hot dip galvanized |
| Weight (EF000167) | 3.85 kg/m |
| Possible support spacing (EF017261) | 1.5 m |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 3100 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 2250 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 1500 |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 1100 |
| Safe working load according to IEC 61537 with support spacing 4.0 m (EF017268) | 450 |
