View larger
Images are for illustrative purposes only. Please refer to data sheet for details

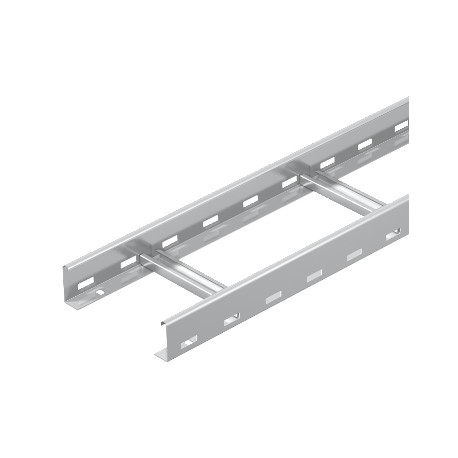

LG 650 VS6 A4 6101223 OBO BETTERMANN Cable ladder perforated, with VS rungs, 60x500x6000, Stainless steel, g..
LG 650 VS6VA4571
6101223
OBO BETTERMANN
6 Pcs.
Cable ladder perforated, with VS rungs, 60x500x6000, Stainless steel, grade 316 Ti, VA, 1.4571
LG 650 VS6 A4 Perforated Stair Tray, with VS 60x500x6000 Stainless Steel Step Stainless Steel 1.4571, V4A, 1.4571 Polished, with Post Treatment
Cable ladder LG 60, 6 m VS A4. Cable ladder with perforated side rail of side height 60 mm with riveted C profile frames, open in an upwards direction (VS version).Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Cables > Cable ladder/wide span cable ladder
Ladder Tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 17,2807 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Dimension | 60x500x6000 |
| Dimension | 60x500x6000 |
| Dimension B | 500 mm |
| Fastening of rung | Blind riveted |
| Height | 60 mm |
| Length | 6000 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4571 |
| Rail thickness | 1,5 mm |
| Rung distance | 300 mm |
| Rung slot dimension | 16,50 |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Side rail version | Flat profile |
|---|---|
| Support spacing 1.5 m | 3,1 kN/m |
| Support spacing 2.0 m | 2,25 kN/m |
| Support spacing 2.5 m | 1,5 kN/m |
| Support spacing 3.0 m | 1,1 kN/m |
| Support spacing 3.5 m | 0,75 kN/m |
| Support spacing 4.0 m | 0,45 kN/m |
| Support spacing 4.5 m | 0,3 kN/m |
| Support spacing 5.0 m | 0,15 kN/m |
| Surface | Bright, treated |
| Usable cross-section | 248 cm² |
| Usable cross-section | 24800 mm² |
| Version of the rungs | Profile perforated |
| Wide-span version | no |
| Width | 500 mm |
