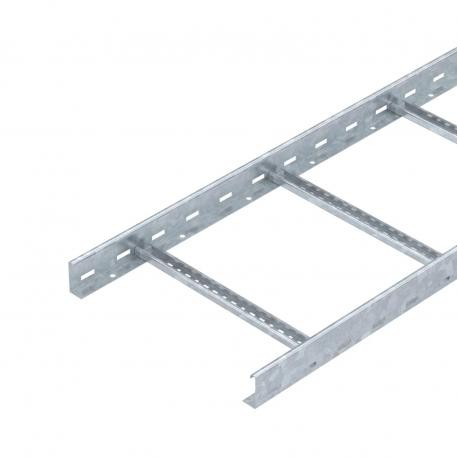

LG 640 VS 3 FT 6208570 OBO BETTERMANN Cable ladder perforated, with VS rungs, 60x400x3000, Hot-dip galvanise..
LG 640 VS 3 FT
6208570
OBO BETTERMANN
3 m.
Cable ladder perforated, with VS rungs, 60x400x3000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Cable ladder LG 60, 3 m VS FT. Cable ladder with perforated side rail of side height 60 mm with riveted C profile frames, open in an upwards direction (VS version).Magnetic shield insulation without cover 10 dB, with cover 15 dB.Additional widths are available on request.
Cables > Cable ladder/wide span cable ladder
Ladder Tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 7,4073 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 60x400x3000 |
| Dimension B | 400 mm |
| Fastening of rung | Blind riveted |
| Fire protection | Maintenance of electrical function of standard support structure |
| Height | 60 mm |
| Length | 3000 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Rail thickness | 1,5 mm |
| Rung distance | 300 mm |
| Rung slot dimension | 16,50 |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Side rail version | Flat profile |
|---|---|
| Support spacing 1.5 m | 3,1 kN/m |
| Support spacing 2.0 m | 2,25 kN/m |
| Support spacing 2.5 m | 1,5 kN/m |
| Support spacing 3.0 m | 1,1 kN/m |
| Support spacing 3.5 m | 0,75 kN/m |
| Support spacing 4.0 m | 0,45 kN/m |
| Support spacing 4.5 m | 0,3 kN/m |
| Support spacing 5.0 m | 0,15 kN/m |
| Surface | Hot-dip galvanised |
| Usable cross-section | 198 cm² |
| Usable cross-section | 19800 mm² |
| Version of the rungs | Profile perforated |
| Wide-span version | no |
| Width | 400 mm |
