View larger
Images are for illustrative purposes only. Please refer to data sheet for details

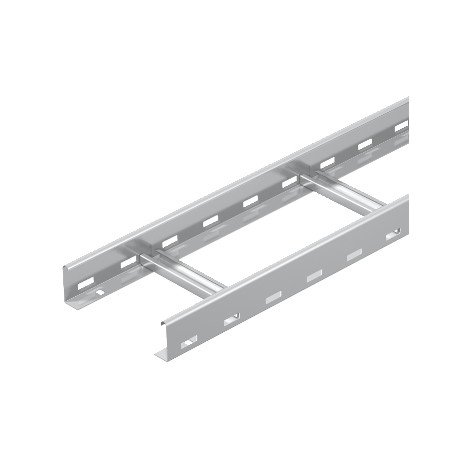

LG 630 VS6VA4301 6208703 OBO BETTERMANN Cable ladder perforated, with VS rungs, 60x300x6000, Stainless steel..
LG 630 VS6 A2
6208703
OBO BETTERMANN
6 m.
Cable ladder perforated, with VS rungs, 60x300x6000, Stainless steel, grade 304, VA, 1.4301
Cable ladder LG 60, 6 m VS A2. Cable ladder with perforated side rail of side height 60 mm with riveted C profile frames, open in an upwards direction (VS version).Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Cables > Cable ladder/wide span cable ladder
Ladder Tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 14,8096 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Dimension | 60x300x6000 |
| Dimension | 60x300x6000 |
| Dimension B | 300 mm |
| Fastening of rung | Blind riveted |
| Height | 60 mm |
| Length | 6000 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Rail thickness | 1,5 mm |
| Rung distance | 300 mm |
| Rung slot dimension | 16,50 |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Side rail version | Flat profile |
|---|---|
| Support spacing 1.5 m | 3,1 kN/m |
| Support spacing 2.0 m | 2,25 kN/m |
| Support spacing 2.5 m | 1,5 kN/m |
| Support spacing 3.0 m | 1,1 kN/m |
| Support spacing 3.5 m | 0,75 kN/m |
| Support spacing 4.0 m | 0,45 kN/m |
| Support spacing 4.5 m | 0,3 kN/m |
| Support spacing 5.0 m | 0,15 kN/m |
| Surface | Bright, treated |
| Usable cross-section | 14800 mm² |
| Usable cross-section | 148 cm² |
| Version of the rungs | Profile perforated |
| Wide-span version | no |
| Width | 300 mm |
