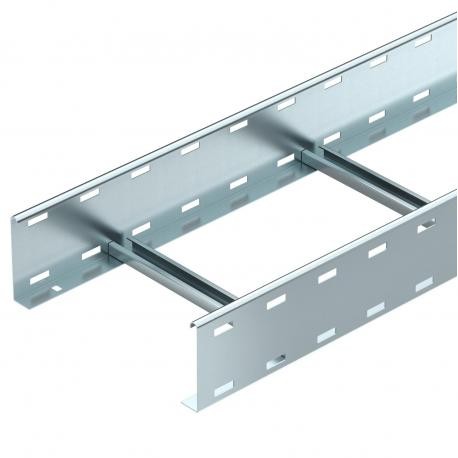

LG 113 VS 3 FS 6216407 OBO BETTERMANN Cable ladder perforated, with VS rungs, 110x300x3000, Strip-galvanised..
LG 113 VS 3 FS
6216407
OBO BETTERMANN
3 m.
Cable ladder perforated, with VS rungs, 110x300x3000, Strip-galvanised, DIN EN 10147, Steel, St
Cable ladder LG 110, 3 m VS FS. Cable ladder with perforated side rail of side height 110 mm with riveted C profile rungs, open in an upwards direction.Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Cables > Cable ladder/wide span cable ladder
Ladder Tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 9,6084 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 110x300x3000 |
| Dimension | 110x300x3000 |
| Dimension B | 300 mm |
| Fastening of rung | Blind riveted |
| Height | 110 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rail thickness | 1,5 mm |
| Rung distance | 300 mm |
| Rung slot dimension | 16,50 |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Side rail version | Flat profile |
|---|---|
| Support spacing 2.0 m | 3,1 kN/m |
| Support spacing 2.5 m | 2 kN/m |
| Support spacing 3.0 m | 1,4 kN/m |
| Support spacing 3.5 m | 0,9 kN/m |
| Support spacing 4.0 m | 0,65 kN/m |
| Support spacing 4.5 m | 0,55 kN/m |
| Support spacing 5.0 m | 0,5 kN/m |
| Support spacing 6.0 m | 0,15 kN/m |
| Surface | Strip galvanized |
| Usable cross-section | 283 cm² |
| Usable cross-section | 28300 mm² |
| Version of the rungs | Profile perforated |
| Wide-span version | no |
| Width | 300 mm |
