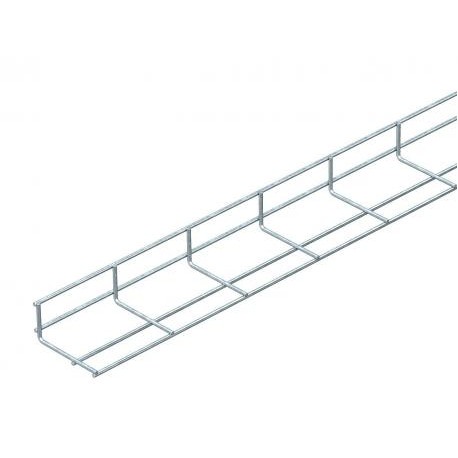

OBO BETTERMANN GW 40 80 FT GW 40 80 FT 6003818 OBO BETTERMANN Grid profile , 80x40x2000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GW 40 80 FT 6003818 OBO BETTERMANN Grid profile , 80x40x2000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St

GW 40 80 FT

6003818

OBO BETTERMANN

2 m.

Grid profile , 80x40x2000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Angle for GW 40 80 FT grid, 80x40x2000 Steel, St, Hot dip galvanized, DIN EN ISO 1461 Angle for grid. Angle for grid tray for cable routing on aluminum supports. Magnetic insulation without cap 15 dB, with cap 25 dB.

Cables > Mesh cable tray
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Grid profile hardware serves as structural framing and mounting support in electrical installations, distribution setups, and mechanical frameworks. This Obo Bettermann GW 40 80 FT profile is produced to deliver reliable rigidity for modular mounting tasks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width: 40 mm
  • Height: 80 mm
  • Length: 2000 mm
  • Diameter longitudinal wire: 4.4 mm
  • Diameter transverse wire: 4.4 mm
  • Useful cross section: 3200 mm²
  • Model: Coupler not included
  • Type of connector: Screwed
  • Material: Steel
  • Surface protection: Hot dip galvanized
  • Weight: 0.63 kg/m

More info

▲
Mesh angle for routing cables in steel girders.
