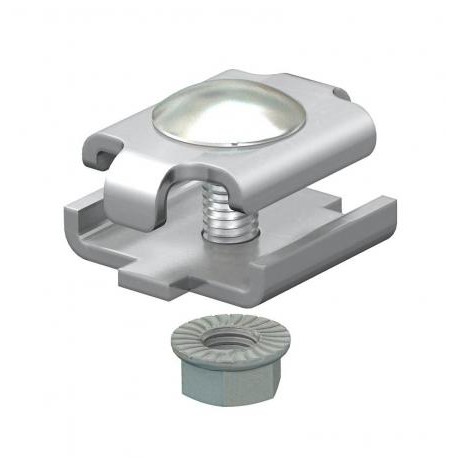

OBO BETTERMANN GSV 34 A4 GSV 34 VA4401 6016648 OBO BETTERMANN Joint connector for mesh cable tray, Stainless steel, grade 316, VA, 1... View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GSV 34 VA4401 6016648 OBO BETTERMANN Joint connector for mesh cable tray, Stainless steel, grade 316, VA, 1...

GSV 34 A4

6016648

OBO BETTERMANN

20 Pcs.

Joint connector for mesh cable tray, Stainless steel, grade 316, VA, 1.4401 Joint connector A4. Screwed version of joint connector for mesh cable trays.Figure: Positioning and quantity of mesh cable tray connectors.50–150 mm = 2 units200–300 mm = 3 units400–450 mm = 4 units500–600 mm = 5 units

Cables > Connector for cable support system
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann part number GSV 34 A4 is a joint connector for mesh cable tray, engineered to link wire basket sections tightly in commercial and industrial wiring installations. Joint connectors provide the necessary rigidity across mesh tray joints to support continuous electrical cable runs. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Adjustable connector, horizontal: no
  • Articulated connector, vertical: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,2345 kg CO2e / 1 Piece
  • Colour: stainless steel
  • Connection type: Screw connector
  • Dimension: 28 x 34
  • Height: 0,94 in
  • Height: 24 mm
  • Length: 34 mm
  • Maintain electrical functions: no
  • Material: Stainless steel 1.4401
  • Rustproof steel, pickled: yes
  • Suitable for cable ladder: no
  • Suitable for cable tray: no
  • Suitable for mesh cable tray: yes
  • Suitable for mesh cable tray wire, max.: 4,9 mm

More info

▲
Adjustable connector, horizontalno
Articulated connector, verticalno
CO2 Footprint (GWP) Cradle-to-Gate0,2345 kg CO2e / 1 Piece
Colourstainless steel
Connection typeScrew connector
Dimension28 x 34
Height0,94 in
Height24 mm
Length34 mm
Maintain electrical functionsno
MaterialStainless steel 1.4401
Rustproof steel, pickledyes
Suitable for cable ladderno
Suitable for cable trayno
Suitable for mesh cable trayyes
Suitable for mesh cable tray wire, max.4,9 mm
Suitable for mesh cable tray wire, min.3,9 mm
SurfaceBright, treated
Version forStraight connector
Width29 mm
Width1,14 in
