View larger
Images are for illustrative purposes only. Please refer to data sheet for details

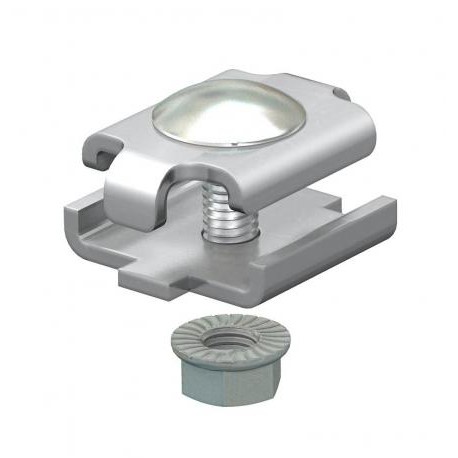

GSV 34 A2 6016642 OBO BETTERMANN Joint connector for mesh cable tray, Stainless steel, grade 304, VA, 1.4301
GSV 34 A2
6016642
OBO BETTERMANN
20 Pcs.
Joint connector for mesh cable tray, Stainless steel, grade 304, VA, 1.4301
GSV 34 A2 union connector, for stainless steel grid tray 1.4301, A2, 1.4301, Polished, with subsequent treatment
A2 contact point union. Straight union for grid trays. Fig. Positioning and number of mesh tray joints.50-150mm = 2 pieces200-300mm = 3 pieces400-450mm = 4 pieces500-600mm = 5 pieces
Cables > Connector for cable support system
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Screwed version of joint connector for mesh cable trays.
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Straight joint |
| Hinged joint horizontal (EF006392) | No |
| Hinged joint vertical (EF006393) | No |
| Type of connection (EF000064) | Screw connector |
| Suitable for wire mesh tray (EF005163) | Yes |
| Suitable for cable ladder (EF005165) | No |
| Suitable for cable tray (EF005166) | No |
| Suitable for wire mesh tray filament (EF005164) | 3.9 mm |
| Length (EF001438) | 34 mm |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Stainless steel |
| Stainless steel, pickled (EF006388) | Yes |
| Material quality (EF001257) | Rustproof and acidproof steel |
| Surface protection (EF000139) | Other |
