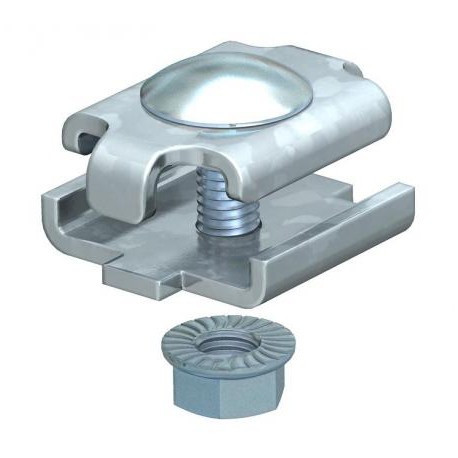

OBO BETTERMANN GSV 34 G GSV 34 G 6016596 OBO BETTERMANN Joint connector for mesh cable tray, Electrogalvanised, DIN 50961, Steel, St View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GSV 34 G 6016596 OBO BETTERMANN Joint connector for mesh cable tray, Electrogalvanised, DIN 50961, Steel, St

GSV 34 G

6016596

OBO BETTERMANN

20 Pcs.

Joint connector for mesh cable tray, Electrogalvanised, DIN 50961, Steel, St Joint connector G. Screwed version of joint connector for mesh cable trays.Figure: Positioning and quantity of mesh cable tray connectors.50–150 mm = 2 units200–300 mm = 3 units400–450 mm = 4 units500–600 mm = 5 units

Cables > Connector for cable support system
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A joint connector for mesh cable tray is a crucial hardware component designed to seamlessly couple and secure sections of wire mesh cable trays together. It ensures proper alignment and load-bearing continuity across horizontal or vertical cable pathways within electrical and data routing infrastructures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Adjustable connector, horizontal: no
  • Articulated connector, vertical: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0913 kg CO2e / 1 Piece
  • Colour: zinc
  • Connection type: Screw connector
  • Dimension: 34 x 27,5
  • Height: 0,94 in
  • Height: 24 mm
  • Length: 34 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: no
  • Suitable for cable tray: no
  • Suitable for mesh cable tray: yes
  • Suitable for mesh cable tray wire, max.: 4,9 mm

More info

▲
Adjustable connector, horizontalno
Articulated connector, verticalno
CO2 Footprint (GWP) Cradle-to-Gate0,0913 kg CO2e / 1 Piece
Colourzinc
Connection typeScrew connector
Dimension34 x 27,5
Height0,94 in
Height24 mm
Length34 mm
Maintain electrical functionsno
MaterialSteel
Rustproof steel, pickledno
Suitable for cable ladderno
Suitable for cable trayno
Suitable for mesh cable trayyes
Suitable for mesh cable tray wire, max.4,9 mm
Suitable for mesh cable tray wire, min.3,9 mm
SurfaceElectrogalvanized
Version forStraight connector
Width29 mm
Width1,14 in
