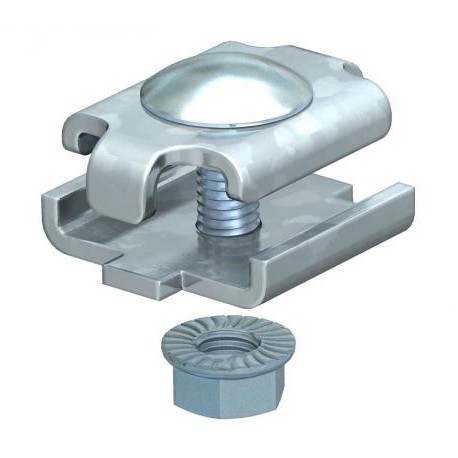

GSV 34 FT 6016634 OBO BETTERMANN Joint connector for mesh cable tray, Hot-dip galvanised, DIN EN ISO 1461, S..
GSV 34 FT
6016634
OBO BETTERMANN
20 Pcs.
Joint connector for mesh cable tray, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Joint connector FT. Screwed version of joint connector for mesh cable trays.Figure: Positioning and quantity of mesh cable tray connectors.50–150 mm = 2 units200–300 mm = 3 units400–450 mm = 4 units500–600 mm = 5 units
Cables > Connector for cable support system
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann GSV 34 FT joint connector for mesh cable tray mechanically fastens adjacent wire grid segments together. Joint components like this are vital for ensuring structural continuity throughout mesh cable management arrays. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Adjustable connector, horizontal: no
- Articulated connector, vertical: no
- CO2 Footprint (GWP) Cradle-to-Gate: 0,1005 kg CO2e / 1 Piece
- Colour: zinc
- Connection type: Screw connector
- Dimension: 34 x 27,5
- Height: 24 mm
- Height: 0,94 in
- Length: 34 mm
- Maintain electrical functions: no
- Material: Steel
- Rustproof steel, pickled: no
- Suitable for cable ladder: no
- Suitable for cable tray: no
- Suitable for mesh cable tray: yes
- Suitable for mesh cable tray wire, max.: 4,9 mm
More info
▲| Adjustable connector, horizontal | no |
|---|---|
| Articulated connector, vertical | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1005 kg CO2e / 1 Piece |
| Colour | zinc |
| Connection type | Screw connector |
| Dimension | 34 x 27,5 |
| Height | 24 mm |
| Height | 0,94 in |
| Length | 34 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rustproof steel, pickled | no |
|---|---|
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Suitable for mesh cable tray | yes |
| Suitable for mesh cable tray wire, max. | 4,9 mm |
| Suitable for mesh cable tray wire, min. | 3,9 mm |
| Surface | Hot-dip galvanised |
| Version for | Straight connector |
| Width | 29 mm |
| Width | 1,14 in |
