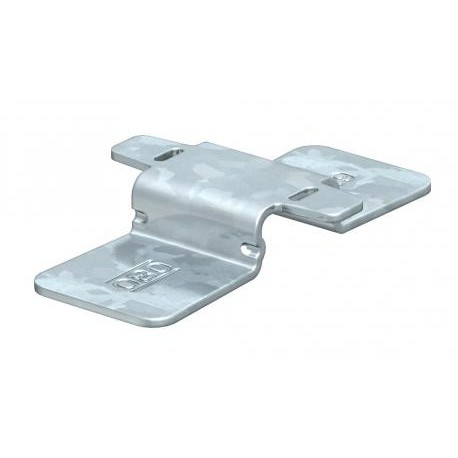

OBO BETTERMANN GRS 4.8 DD GRS 4.8 DD 6016561 OBO BETTERMANN Quick connector for mesh cable tray, d 4,8mm, Zinc-aluminium coated, doubl.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GRS 4.8 DD 6016561 OBO BETTERMANN Quick connector for mesh cable tray, d 4,8mm, Zinc-aluminium coated, doubl..

GRS 4.8 DD

6016561

OBO BETTERMANN

50 Pcs.

Quick connector for mesh cable tray, d 4,8mm, Zinc-aluminium coated, double-dip, Steel, St Quick connector. Quick connector for screwless straight connection of mesh cable trays without special tools, for mesh cable trays up to a width of 150 mm.Figure: Positioning and quantity of mesh cable tray connectors.50–150 mm = 2 units

Cables > Connector for cable support system
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Obo Bettermann GRS 4.8 DD quick connector for mesh cable tray simplifies the interconnection of wire mesh routing components on job sites. Quick-locking mesh connectors provide fast, secure mechanical attachment without the need for traditional nuts and bolts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Adjustable connector, horizontal: no
  • Articulated connector, vertical: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,1063 kg CO2e / 1 Piece
  • Colour: zinc
  • Connection type: Screwless connector
  • Dimension: 69 x 44
  • Dimension: d 4,8mm
  • Height: 11 mm
  • Height: 0,43 in
  • Length: 69 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Plate thickness: 1,45 mm
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: no
  • Suitable for cable tray: no

More info

▲
Adjustable connector, horizontalno
Articulated connector, verticalno
CO2 Footprint (GWP) Cradle-to-Gate0,1063 kg CO2e / 1 Piece
Colourzinc
Connection typeScrewless connector
Dimension69 x 44
Dimensiond 4,8mm
Height11 mm
Height0,43 in
Length69 mm
Maintain electrical functionsno
MaterialSteel
Plate thickness1,45 mm
Rustproof steel, pickledno
Suitable for cable ladderno
Suitable for cable trayno
Suitable for mesh cable trayyes
SurfaceStrip galvanised zinc/aluminium, Double Dip
Version forStraight connector
Width1,73 in
Width44 mm
