View larger
Images are for illustrative purposes only. Please refer to data sheet for details

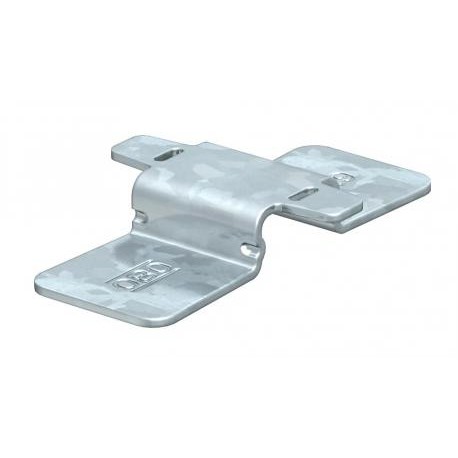

GRS 3.9 DD 6016545 OBO BETTERMANN Quick connector for mesh cable tray, d 3,9mm, Zinc-aluminium coated, doubl..
GRS 3.9 DD
6016545
OBO BETTERMANN
50 Pcs.
Quick connector for mesh cable tray, d 3,9mm, Zinc-aluminium coated, double-dip, Steel, St
Quick connector GRS 3.9 DD, for grid tray d 3.9mm Steel, St, Galvanized in zinc/aluminum band, Double Dip, DIN EN 10346
Quick joining. Quick connection for the straight connection without screws of grid trays without special tools, for grid trays up to a width of 150 mm.Fig. Positioning and number of mesh tray joints.50-150mm = 2 pieces
Cables > Connector for cable support system
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Figure: Positioning and quantity of mesh cable tray, connectors.
50-150 mm = 2 units
400 mm = 3 units
450-600 mm = 5 units
50-150 mm = 2 units
400 mm = 3 units
450-600 mm = 5 units
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Straight joint |
| Hinged joint horizontal (EF006392) | No |
| Hinged joint vertical (EF006393) | No |
| Type of connection (EF000064) | Screw less connector |
| Suitable for wire mesh tray (EF005163) | Yes |
| Suitable for cable ladder (EF005165) | No |
| Suitable for cable tray (EF005166) | No |
| Length (EF001438) | 69 mm |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Stainless steel, pickled (EF006388) | No |
| Surface protection (EF000139) | Continuously galvanised zinc-aluminium |
