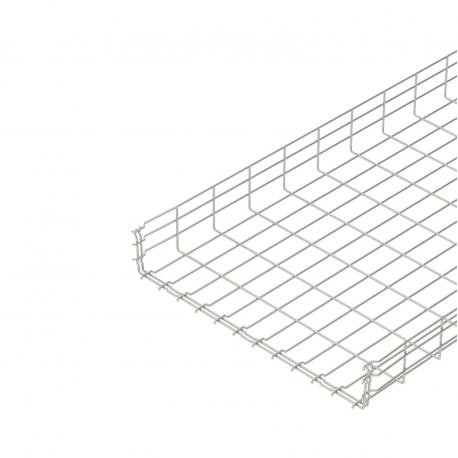

OBO BETTERMANN GRM 105 600 A4 GRM105 600VA4401 6002485 OBO BETTERMANN Mesh cable tray GRM , 105x600x3000, Stained, Stainless steel, grade .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GRM105 600VA4401 6002485 OBO BETTERMANN Mesh cable tray GRM , 105x600x3000, Stained, Stainless steel, grade ..

GRM 105 600 A4

6002485

OBO BETTERMANN

3 m.

Mesh cable tray GRM , 105x600x3000, Stained, Stainless steel, grade 316, VA, 1.4401 Mesh cable tray GR-Magic® 105 A4. Mesh cable tray with shaped connector of side height 105 mm.Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Cables > Mesh cable tray
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A mesh cable tray functions as a heavy-duty raceway system, supporting large quantities of control and power cables in complex facility layouts. Built by Obo Bettermann, the GRM 105 600 A4 offers robust construction to manage high-capacity cable distribution safely and efficiently.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 17,8821 kg CO2e / 1 Meter
  • Colour: stainless steel
  • Connector version: Integrated connector
  • Dimension: 105x600x3000
  • Dimension B: 600 mm
  • Dimension H: 108 mm
  • Height: 105 mm
  • Height: 4,13 in
  • Integrated partition: Without
  • Length: 3000 mm
  • Load test type according to IEC 61537: Type II
  • Maintain electrical functions: no
  • Material: Stainless steel 1.4401
  • Profile shape: U-shaped
  • Rustproof steel, pickled: yes
  • Screwless connector: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate17,8821 kg CO2e / 1 Meter
Colourstainless steel
Connector versionIntegrated connector
Dimension105x600x3000
Dimension B600 mm
Dimension H108 mm
Height105 mm
Height4,13 in
Integrated partitionWithout
Length3000 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialStainless steel 1.4401
Profile shapeU-shaped
Rustproof steel, pickledyes
Screwless connectoryes
Support spacing 1.0 m1,25 kN/m
Support spacing 1.5 m0,85 kN/m
Support spacing 2.0 m0,6 kN/m
Support spacing 2.5 m0,42 kN/m
Support spacing 3.0 m0,3 kN/m
SurfaceBright, treated
Type of connector, cable support systemClick fastening
Usable cross-section554 cm²
Usable cross-section55400 mm²
Wide-span versionno
Width23,62 in
Width600 mm
Wire diameter4,8 mm
