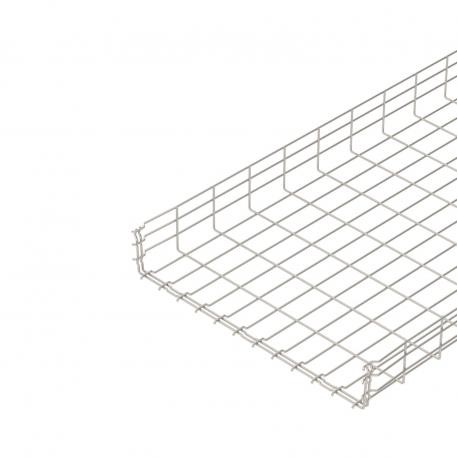

GRM 105 600 A2 6002469 OBO BETTERMANN Mesh cable tray GRM , 105x600x3000, Stainless steel, grade 304, VA, 1...
GRM 105 600 A2
6002469
OBO BETTERMANN
3 m.
Cables > Mesh cable tray
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann GRM 105 600 A2 mesh cable tray acts as a high-capacity raceway system, supporting large volumes of heavy industrial cables with reliable stability. These structural cable trays maintain orderly separation and safeguard network or power lines across complex infrastructural layouts.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 18,0261 kg CO2e / 1 Meter
- Colour: stainless steel
- Connector version: Integrated connector
- Dimension: 105x600x3000
- Dimension B: 600 mm
- Dimension H: 108 mm
- Height: 105 mm
- Height: 4,13 in
- Integrated partition: Without
- Length: 3000 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: no
- Material: Stainless steel 1.4301
- Profile shape: U-shaped
- Rustproof steel, pickled: yes
- Screwless connector: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 18,0261 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 105x600x3000 |
| Dimension B | 600 mm |
| Dimension H | 108 mm |
| Height | 105 mm |
| Height | 4,13 in |
| Integrated partition | Without |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Profile shape | U-shaped |
| Rustproof steel, pickled | yes |
| Screwless connector | yes |
|---|---|
| Support spacing 1.0 m | 1,25 kN/m |
| Support spacing 1.5 m | 0,85 kN/m |
| Support spacing 2.0 m | 0,6 kN/m |
| Support spacing 2.5 m | 0,42 kN/m |
| Support spacing 3.0 m | 0,3 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 554 cm² |
| Usable cross-section | 55400 mm² |
| Wide-span version | no |
| Width | 23,62 in |
| Width | 600 mm |
| Wire diameter | 4,8 mm |
