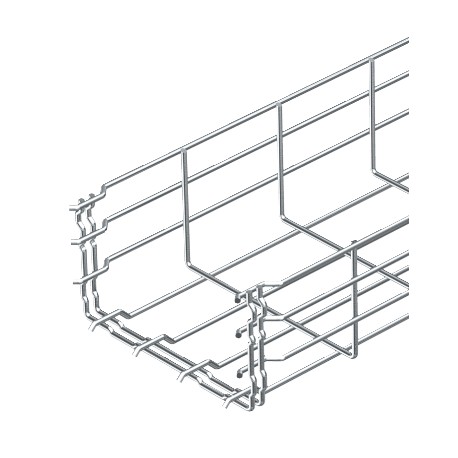

GRM105 500VA4401 6002483 OBO BETTERMANN Mesh cable tray GRM , 105x500x3000, Stained, Stainless steel, grade ..
GRM 105 500 A4
6002483
OBO BETTERMANN
3 m.
Cables > Mesh cable tray
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann GRM 105 500 A4 mesh cable tray provides heavy-duty containment and structural support for major electrical cable runs in demanding industrial applications. These wire mesh pathways offer high mechanical strength and reliable corrosion resistance for critical routing paths.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 16,045 kg CO2e / 1 Meter
- Colour: stainless steel
- Connector version: Integrated connector
- Dimension: 105x500x3000
- Dimension B: 500 mm
- Dimension H: 108 mm
- Height: 4,13 in
- Height: 105 mm
- Integrated partition: Without
- Length: 3000 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: no
- Material: Stainless steel 1.4401
- Profile shape: U-shaped
- Rustproof steel, pickled: yes
- Screwless connector: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 16,045 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 105x500x3000 |
| Dimension B | 500 mm |
| Dimension H | 108 mm |
| Height | 4,13 in |
| Height | 105 mm |
| Integrated partition | Without |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4401 |
| Profile shape | U-shaped |
| Rustproof steel, pickled | yes |
| Screwless connector | yes |
|---|---|
| Support spacing 1.0 m | 1,25 kN/m |
| Support spacing 1.5 m | 0,85 kN/m |
| Support spacing 2.0 m | 0,6 kN/m |
| Support spacing 2.5 m | 0,42 kN/m |
| Support spacing 3.0 m | 0,3 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 45900 mm² |
| Usable cross-section | 459 cm² |
| Wide-span version | no |
| Width | 19,69 in |
| Width | 500 mm |
| Wire diameter | 4,8 mm |
