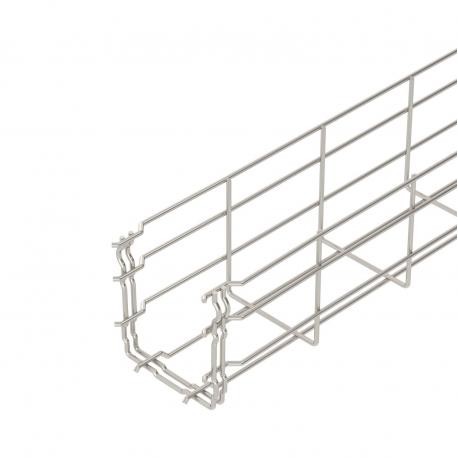

OBO BETTERMANN GRM 105 100 A4 GRM105 100VA4401 6002475 OBO BETTERMANN Mesh cable tray GRM , 105x100x3000, Stained, Stainless steel, grade .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GRM105 100VA4401 6002475 OBO BETTERMANN Mesh cable tray GRM , 105x100x3000, Stained, Stainless steel, grade ..

GRM 105 100 A4

6002475

OBO BETTERMANN

3 m.

Mesh cable tray GRM , 105x100x3000, Stained, Stainless steel, grade 316, VA, 1.4401 Mesh cable tray GR-Magic® 105 A4. Mesh cable tray with shaped connector of side height 105 mm.Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Cables > Mesh cable tray
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A mesh cable tray GRM is a structural wire basket utilized in electrical and telecommunication infrastructures to support and route cable runs securely across facilities. Components like this Obo Bettermann GRM 105 100 A4 help optimize workspace layouts and provide easy access for future maintenance or system expansions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 5,0271 kg CO2e / 1 Meter
  • Colour: stainless steel
  • Connector version: Integrated connector
  • Dimension: 105x100x3000
  • Dimension B: 100 mm
  • Dimension H: 108 mm
  • Height: 105 mm
  • Height: 4,13 in
  • Integrated partition: Without
  • Length: 3000 mm
  • Load test type according to IEC 61537: Type II
  • Maintain electrical functions: no
  • Material: Stainless steel 1.4401
  • Profile shape: U-shaped
  • Rustproof steel, pickled: yes
  • Screwless connector: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate5,0271 kg CO2e / 1 Meter
Colourstainless steel
Connector versionIntegrated connector
Dimension105x100x3000
Dimension B100 mm
Dimension H108 mm
Height105 mm
Height4,13 in
Integrated partitionWithout
Length3000 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialStainless steel 1.4401
Profile shapeU-shaped
Rustproof steel, pickledyes
Screwless connectoryes
Support spacing 1.0 m0,8 kN/m
Support spacing 1.5 m0,55 kN/m
Support spacing 2.0 m0,37 kN/m
Support spacing 2.5 m0,27 kN/m
Support spacing 3.0 m0,25 kN/m
SurfaceBright, treated
Type of connector, cable support systemClick fastening
Usable cross-section8200 mm²
Usable cross-section82 cm²
Wide-span versionno
Width3,94 in
Width100 mm
Wire diameter3,9 mm
