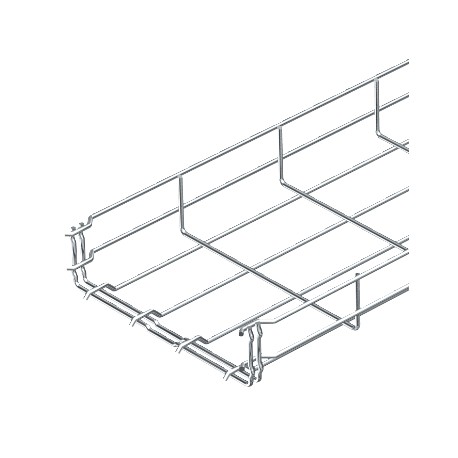

OBO BETTERMANN GRM 55 600 G GRM 55 600 G 6001454 OBO BETTERMANN Mesh cable tray GRM , 55x600x3000, Electrogalvanised, DIN 50961, Steel, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GRM 55 600 G 6001454 OBO BETTERMANN Mesh cable tray GRM , 55x600x3000, Electrogalvanised, DIN 50961, Steel, ..

GRM 55 600 G

6001454

OBO BETTERMANN

3 m.

Mesh cable tray GRM , 55x600x3000, Electrogalvanised, DIN 50961, Steel, St GRM GRM 55 600 G grid tray, 55x600x3000 Steel, St, electro-galvanized, EN ISO 19598 / EN ISO 4042 GR-Magic® 55 G grid tray. Grid tray with quick connection with 55 mm wing. Magnetic insulation without lid 15 dB, with lid 25 dB. You can consult more accurate information about the UL classification in the corresponding approval.

Cables > Mesh cable tray
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann mesh cable tray GRM 55 600 G provides a wide-format open routing system to support power and communication cables in structured indoor networks. Electrogalvanised steel coating provides clean surface protection against oxidation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Profile shape (EF005179): U-shape
  • Width (EF000008): 600 mm
  • Height (EF000040): 55 mm
  • Length (EF001438): 3000 mm
  • Diameter longitudinal wire (EF017247): 4.8 mm
  • Diameter transverse wire (EF017380): 4.8 mm
  • Useful cross section (EF005140): 26500 mm²
  • Model (EF000010): Integrated coupler
  • Type of connector (EF000141): Click in
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Surface protection (EF000139): Galvanic/electrolytic zinc plated
  • Weight (EF000167): 3.2 kg/m
  • Load test type according to IEC 61537 (EF015362): Type II
  • Possible support spacing (EF017261): 1 m

More info

▲
Magnetic shield insulation without cover 15 dB, with cover 25 dB. You can find detailed information regarding the UL classification in the respective certification.

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
