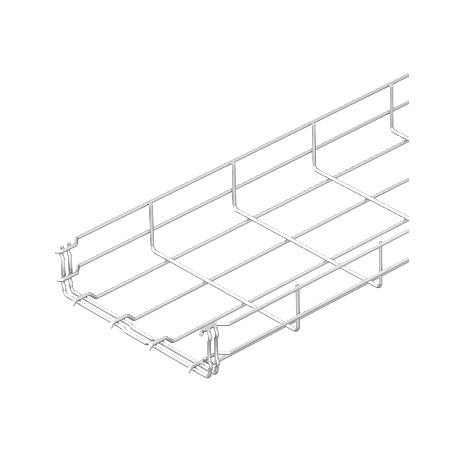

GRM 55 50 A4 6001087 OBO BETTERMANN Mesh cable tray GRM , 55x50x3000, Stained, Stainless steel, grade 316, V..
GRM 55 50 A4
6001087
OBO BETTERMANN
3 m.
Cables > Mesh cable tray
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Obo Bettermann GRM 55 50 A4 mesh cable tray is utilized to establish clean, secure pathways for electrical conductors in demanding environments prone to corrosion. Cable support structures of this classification keep lines organized, relieve tension on terminations, and protect runs from mechanical interference.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 3,4099 kg CO2e / 1 Meter
- Colour: stainless steel
- Connector version: Integrated connector
- Dimension: 55x50x3000
- Dimension B: 52 mm
- Dimension H: 58 mm
- Fire protection: Maintenance of electrical function of cable-specific support structure
- Height: 55 mm
- Height: 2,17 in
- Integrated partition: Without
- Length: 3000 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: yes
- Material: Stainless steel 1.4401
- Profile shape: U-shaped
- Rustproof steel, pickled: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 3,4099 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 55x50x3000 |
| Dimension B | 52 mm |
| Dimension H | 58 mm |
| Fire protection | Maintenance of electrical function of cable-specific support structure |
| Height | 55 mm |
| Height | 2,17 in |
| Integrated partition | Without |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | yes |
| Material | Stainless steel 1.4401 |
| Profile shape | U-shaped |
| Rustproof steel, pickled | yes |
|---|---|
| Screwless connector | yes |
| Support spacing 1.0 m | 0,35 kN/m |
| Support spacing 1.5 m | 0,2 kN/m |
| Support spacing 2.0 m | 0,1 kN/m |
| Support spacing 2.5 m | 0,1 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 16 cm² |
| Usable cross-section | 1600 mm² |
| Wide-span version | no |
| Width | 50 mm |
| Width | 1,97 in |
| Wire diameter | 3,9 mm |
