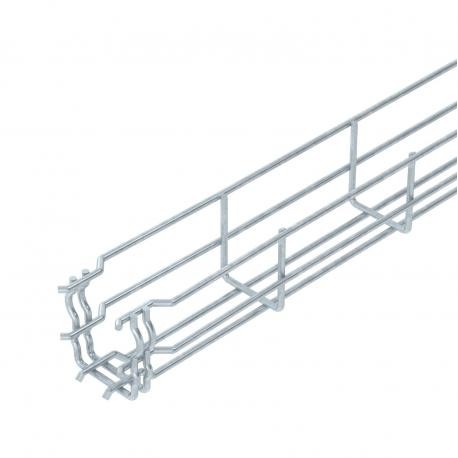

OBO BETTERMANN GRM 55 50 FT GRM 55 50 FT 6001415 OBO BETTERMANN Mesh cable tray GRM , 55x50x3000, Hot-dip galvanised, DIN EN ISO 1461, S.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GRM 55 50 FT 6001415 OBO BETTERMANN Mesh cable tray GRM , 55x50x3000, Hot-dip galvanised, DIN EN ISO 1461, S..

GRM 55 50 FT

6001415

OBO BETTERMANN

3 m.

Mesh cable tray GRM , 55x50x3000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Mesh cable tray GR-Magic® 55 FT. Mesh cable tray with shaped connector of side height 55 mm.Magnetic shield insulation without cover 15 dB, with cover 25 dB.You can find detailed information regarding the UL classification in the respective certification.

Cables > Mesh cable tray
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for secure overhead and wall-mounted routing, the Obo Bettermann GRM 55 50 FT mesh cable tray provides robust containment for industrial wiring. Cable trays of this profile manage bulk runs of power and instrumentation cables while ensuring reliable mechanical stability across various sectors.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 1,4752 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Integrated connector
  • Dimension: 55x50x3000
  • Dimension B: 52 mm
  • Dimension H: 58 mm
  • Fire protection: Maintenance of electrical function of cable-specific support structure
  • Height: 55 mm
  • Height: 2,17 in
  • Integrated partition: Without
  • Length: 3000 mm
  • Load test type according to IEC 61537: Type II
  • Maintain electrical functions: yes
  • Material: Steel
  • Profile shape: U-shaped
  • Rustproof steel, pickled: no

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate1,4752 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension55x50x3000
Dimension B52 mm
Dimension H58 mm
Fire protectionMaintenance of electrical function of cable-specific support structure
Height55 mm
Height2,17 in
Integrated partitionWithout
Length3000 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsyes
MaterialSteel
Profile shapeU-shaped
Rustproof steel, pickledno
Screwless connectoryes
Support spacing 1.0 m0,35 kN/m
Support spacing 1.5 m0,2 kN/m
Support spacing 2.0 m0,1 kN/m
Support spacing 2.5 m0,1 kN/m
SurfaceHot-dip galvanised
Type of connector, cable support systemClick fastening
Usable cross-section1600 mm²
Usable cross-section16 cm²
Wide-span versionno
Width50 mm
Width1,97 in
Wire diameter3,9 mm
