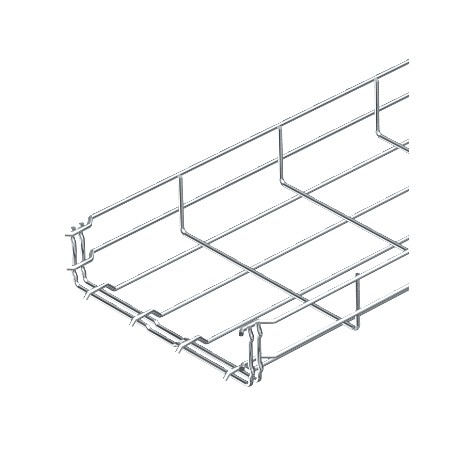

OBO BETTERMANN GRM 55 450 G GRM 55 450 G 6001451 OBO BETTERMANN Mesh cable tray GRM , 55x450x3000, Electrogalvanised, DIN 50961, Steel, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GRM 55 450 G 6001451 OBO BETTERMANN Mesh cable tray GRM , 55x450x3000, Electrogalvanised, DIN 50961, Steel, ..

GRM 55 450 G

6001451

OBO BETTERMANN

3 Pcs.

Mesh cable tray GRM , 55x450x3000, Electrogalvanised, DIN 50961, Steel, St Mesh cable tray GR-Magic® 55 G. Mesh cable tray with shaped connector of side height 55 mm.Magnetic shield insulation without cover 15 dB, with cover 25 dB.You can find detailed information regarding the UL classification in the respective certification.

Cables > Mesh cable tray
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A mesh cable tray serves as a standard raceway system for routing power and instrumentation cables across commercial and industrial zones. This Obo Bettermann GRM 55 450 G provides reliable containment and ventilation for extensive electrical networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 4,4616 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Integrated connector
  • Dimension: 55x450x3000
  • Dimension B: 450 mm
  • Dimension H: 58 mm
  • Height: 55 mm
  • Height: 2,17 in
  • Integrated partition: Without
  • Length: 3000 mm
  • Load test type according to IEC 61537: Type II
  • Maintain electrical functions: no
  • Material: Steel
  • Profile shape: U-shaped
  • Rustproof steel, pickled: no
  • Screwless connector: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate4,4616 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension55x450x3000
Dimension B450 mm
Dimension H58 mm
Height55 mm
Height2,17 in
Integrated partitionWithout
Length3000 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialSteel
Profile shapeU-shaped
Rustproof steel, pickledno
Screwless connectoryes
Support spacing 1.0 m0,9 kN/m
Support spacing 1.5 m0,6 kN/m
Support spacing 2.0 m0,3 kN/m
Support spacing 2.5 m0,25 kN/m
SurfaceElectrogalvanized
Type of connector, cable support systemClick fastening
Usable cross-section195 cm²
Usable cross-section19500 mm²
Wide-span versionno
Width450 mm
Width17,72 in
Wire diameter4,8 mm
