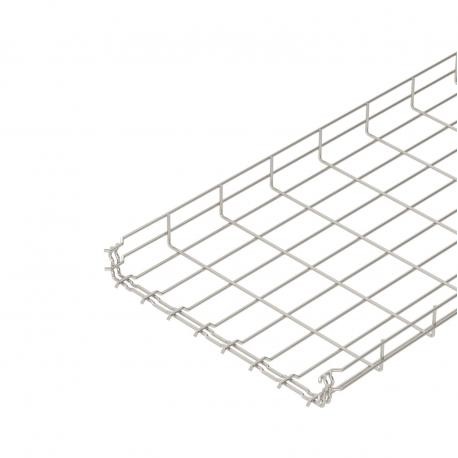

GRM 55 400VA4401 6001095 OBO BETTERMANN Mesh cable tray GRM , 55x400x3000, Stained, Stainless steel, grade 3..
GRM 55 400 A4
6001095
OBO BETTERMANN
3 m.
Cables > Mesh cable tray
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Obo Bettermann GRM 55 400 A4 mesh cable tray is utilized to establish dependable routing infrastructure for power and control lines in chemically aggressive locations. Cable tray assemblies ensure that multi-cable layouts remain secure, orderly, and compliant with structural support standards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 11,9219 kg CO2e / 1 Meter
- Colour: stainless steel
- Connector version: Integrated connector
- Dimension: 55x400x3000
- Dimension B: 400 mm
- Dimension H: 58 mm
- Height: 2,17 in
- Height: 55 mm
- Integrated partition: Without
- Length: 3000 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: yes
- Material: Stainless steel 1.4401
- Profile shape: U-shaped
- Rustproof steel, pickled: yes
- Screwless connector: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 11,9219 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 55x400x3000 |
| Dimension B | 400 mm |
| Dimension H | 58 mm |
| Height | 2,17 in |
| Height | 55 mm |
| Integrated partition | Without |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | yes |
| Material | Stainless steel 1.4401 |
| Profile shape | U-shaped |
| Rustproof steel, pickled | yes |
|---|---|
| Screwless connector | yes |
| Support spacing 1.0 m | 0,9 kN/m |
| Support spacing 1.5 m | 0,6 kN/m |
| Support spacing 2.0 m | 0,3 kN/m |
| Support spacing 2.5 m | 0,25 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 17500 mm² |
| Usable cross-section | 175 cm² |
| Wide-span version | no |
| Width | 15,75 in |
| Width | 400 mm |
| Wire diameter | 4,8 mm |
