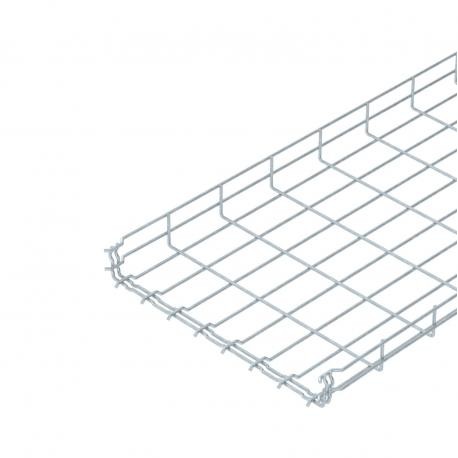

GRM 55 400 FT 6001428 OBO BETTERMANN Mesh cable tray GRM , 55x400x3000, Hot-dip galvanised, DIN EN ISO 1461,..
GRM 55 400 FT
6001428
OBO BETTERMANN
3 m.
Mesh cable tray GRM , 55x400x3000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Mesh cable tray GR-Magic® 55 FT. Mesh cable tray with shaped connector of side height 55 mm.Magnetic shield insulation without cover 15 dB, with cover 25 dB.You can find detailed information regarding the UL classification in the respective certification.
Cables > Mesh cable tray
Grid
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 4,9741 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 55x400x3000 |
| Dimension B | 400 mm |
| Dimension H | 58 mm |
| Fire protection | Maintenance of electrical function of cable-specific support structure |
| Height | 55 mm |
| Height | 2,17 in |
| Integrated partition | Without |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | yes |
| Material | Steel |
| Profile shape | U-shaped |
| Rustproof steel, pickled | no |
|---|---|
| Screwless connector | yes |
| Support spacing 1.0 m | 0,9 kN/m |
| Support spacing 1.5 m | 0,6 kN/m |
| Support spacing 2.0 m | 0,3 kN/m |
| Support spacing 2.5 m | 0,25 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 175 cm² |
| Usable cross-section | 17500 mm² |
| Wide-span version | no |
| Width | 400 mm |
| Width | 15,75 in |
| Wire diameter | 4,8 mm |
