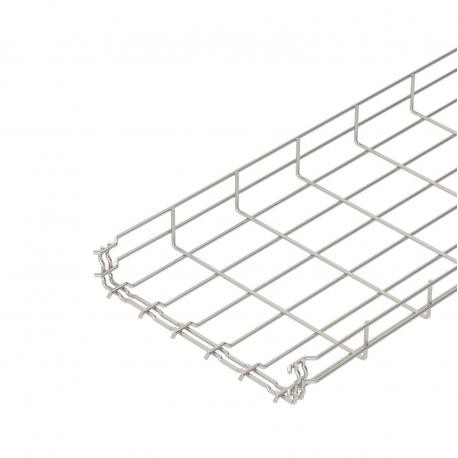

OBO BETTERMANN GRM 55 300 A4 GRM 55 300VA4401 6001093 OBO BETTERMANN Mesh cable tray GRM , 55x300x3000, Stained, Stainless steel, grade 3.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GRM 55 300VA4401 6001093 OBO BETTERMANN Mesh cable tray GRM , 55x300x3000, Stained, Stainless steel, grade 3..

GRM 55 300 A4

6001093

OBO BETTERMANN

3 m.

Mesh cable tray GRM , 55x300x3000, Stained, Stainless steel, grade 316, VA, 1.4401 Mesh cable tray GR-Magic® 55 A4. Mesh cable tray with shaped connector of side height 55 mm.Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Cables > Mesh cable tray
Grid

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A mesh cable tray functions as a critical support element for electrical and communication cables in corrosive or heavy industrial environments. Built by Obo Bettermann, the GRM 55 300 A4 combines corrosion-resistant material with an open wireframe to ensure safe and organized cable management.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 9,7685 kg CO2e / 1 Meter
  • Colour: stainless steel
  • Connector version: Integrated connector
  • Dimension: 55x300x3000
  • Dimension B: 300 mm
  • Dimension H: 58 mm
  • Fire protection: Maintenance of electrical function of cable-specific support structure
  • Height: 55 mm
  • Height: 2,17 in
  • Integrated partition: Without
  • Length: 3000 mm
  • Load test type according to IEC 61537: Type II
  • Maintain electrical functions: yes
  • Material: Stainless steel 1.4401
  • Profile shape: U-shaped
  • Rustproof steel, pickled: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate9,7685 kg CO2e / 1 Meter
Colourstainless steel
Connector versionIntegrated connector
Dimension55x300x3000
Dimension B300 mm
Dimension H58 mm
Fire protectionMaintenance of electrical function of cable-specific support structure
Height55 mm
Height2,17 in
Integrated partitionWithout
Length3000 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsyes
MaterialStainless steel 1.4401
Profile shapeU-shaped
Rustproof steel, pickledyes
Screwless connectoryes
Support spacing 1.0 m0,7 kN/m
Support spacing 1.5 m0,5 kN/m
Support spacing 2.0 m0,25 kN/m
Support spacing 2.5 m0,2 kN/m
SurfaceBright, treated
Type of connector, cable support systemClick fastening
Usable cross-section129 cm²
Usable cross-section12900 mm²
Wide-span versionno
Width300 mm
Width11,81 in
Wire diameter4,8 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
